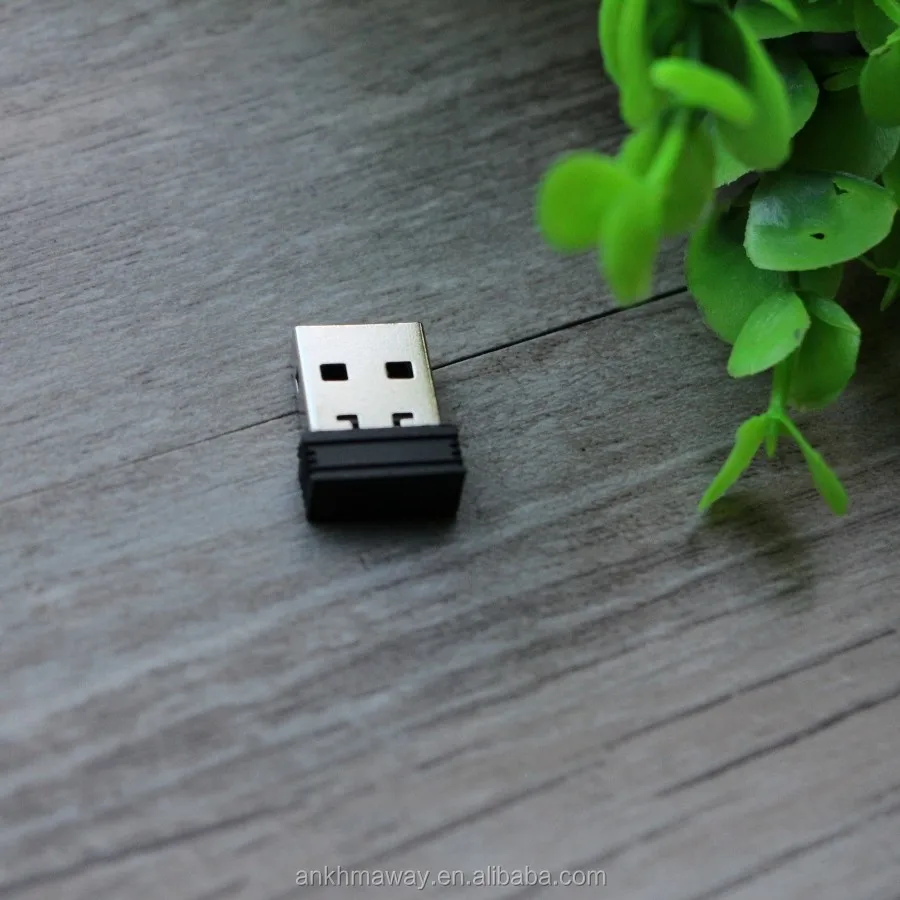

Customized USB Bluetooth Dongle Mini Beacon Eddystone

FOB Reference Price:Get Latest Price
US $4.7-9.5 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
iBeTag
Model Number:
iB005N
Product Name:
iBeacon
Version:
Bluetooth 4.0
Chipset:
Nordic nrf51822
Bluetooth range:
40m in open air
Application:
iOS7.0/8.0 with tool APP & Andriod with SDK
Certificates:
CE/FCC/ROHS/MFI
Powered by:
USB adapter
Housing size:
19*15*6mm
Weight:
5g
OEM:
Accept
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Carton Packing
Port
ShenZhen
Lead Time :
Shipped in 3 days after payment
Video Description
iBeacon Feature

Customized USB Bluetooth Dongle Mini Beacon Eddystone

Support iBeacon and Eddystone.

Built-in Beacon firmware, compatible with BLE.

It can powered by computer USB port, USB AC adapter, portable power, etc.
All the parameters can be configured (UUID, Major, Minor, Measured Power, TX Power, etc.)
We will provide you with a tool APP and API document to configure beacon data, and IOS/Android SDK and Android Source Code to develop your APP.
Encrypted parameter, a password is needed when access to configure.
Support the background management of battery.

iBeacon Parameters
Item
Test Data
Remarks
Chip
NRF51822
Nordic
Operation Voltage
2.0-3.6V
DC
Operation Frequency
2400-2483.5MHz
Programmable
Frequency Error
+/- 20KHz
Null
Modulation
Q-QPSK
Null
Standby current
12uA
Null
Output Power
4 dBm - -40dBm
Programmable
Receiving Sensitivity
-93dBm
High gain mode
Transmission distance
40m
BER<0.1%, Open space
Antenna
50ohm
Onboard
State
Operation Current (uA)
Sleeping Mode
3.6
Connectable Mode
142
Non-Connectable Mode
22.5
Detailed Images
Certifications
Our Service

Case customization
For the bulk purchase consumer, we provide the case customization and even the hardware design just for your customized housing

Logo printing customization
We can print your own logo on the case in any color (Gradient color will relatively cost more).

Firmware customization
We provide the firmware customization.you can change the UUID, major, minor and other parameters.

Other Models

iB004N

Bluetooth range: 75m
Battery type: CR2450
Working time: 30 months based on broadcasting rate 1second
Size: 40*40*13.5mm
Chipset: N51822 256KB.

iB003N

Bluetooth range: 100m
Battery type: CR2477
Working time: 58monthsbased on broadcasting rate 1second
Size: 42.3mmx42.3mmx13.4mm
Chipset: N51822 256KB

iB001N

Bluetooth range: 20-30m
Battery type: CR2032
Working time: 12 months based on broadcasting rate 1second
Size: 27*7.6mm
Chipset: N51822 256KB

iB004N PLUS

Bluetooth range: 100m
Battery type: CR2477
Working time: 58 months based on broadcasting rate 1second
Size: 40*40*16.5mm
Chipset: N51822 256KB

iB006N

Bluetooth range: 130m
Battery type: Rechargeable Battery
Size: 18*58*85mm
Chipset: N52832

iB001M

Bluetooth range: 70m
Battery type: CR2016
Working time: 10 months based on broadcasting rate 1second
Size: 40.3mm x 23.9mm x 2.6mm
Chipset: N51822 256KB

iB005N-SMA

Bluetooth range: 130m
Powered by: USB adapter
Size: 19*15*6mm
Chipset: N51822 256KB

iB001W

Features: iBeacon data, but Eddystone data is optional
Chipset: N51822 256KB
Bluetooth range: 20m in open air
Battery type: Rechargeable battery
Working time: 1 month based on broadcasting rate 1s every charge
With Vibrator and LED
Color: black, blue, pink, orange, red
