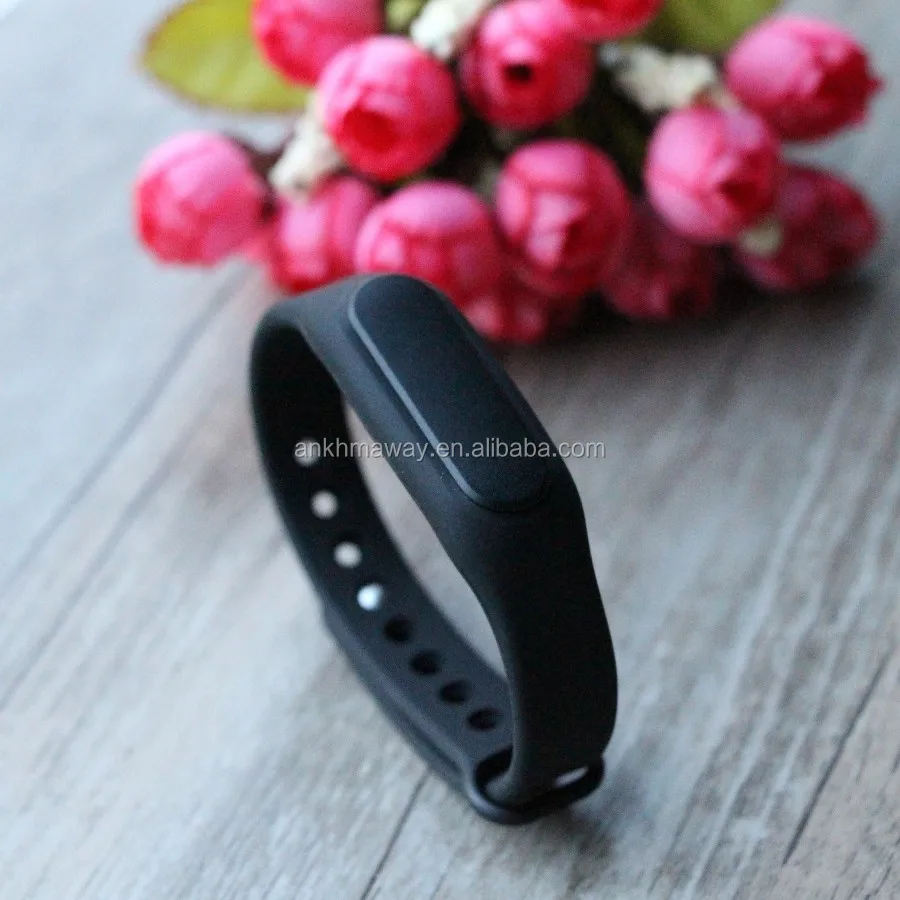

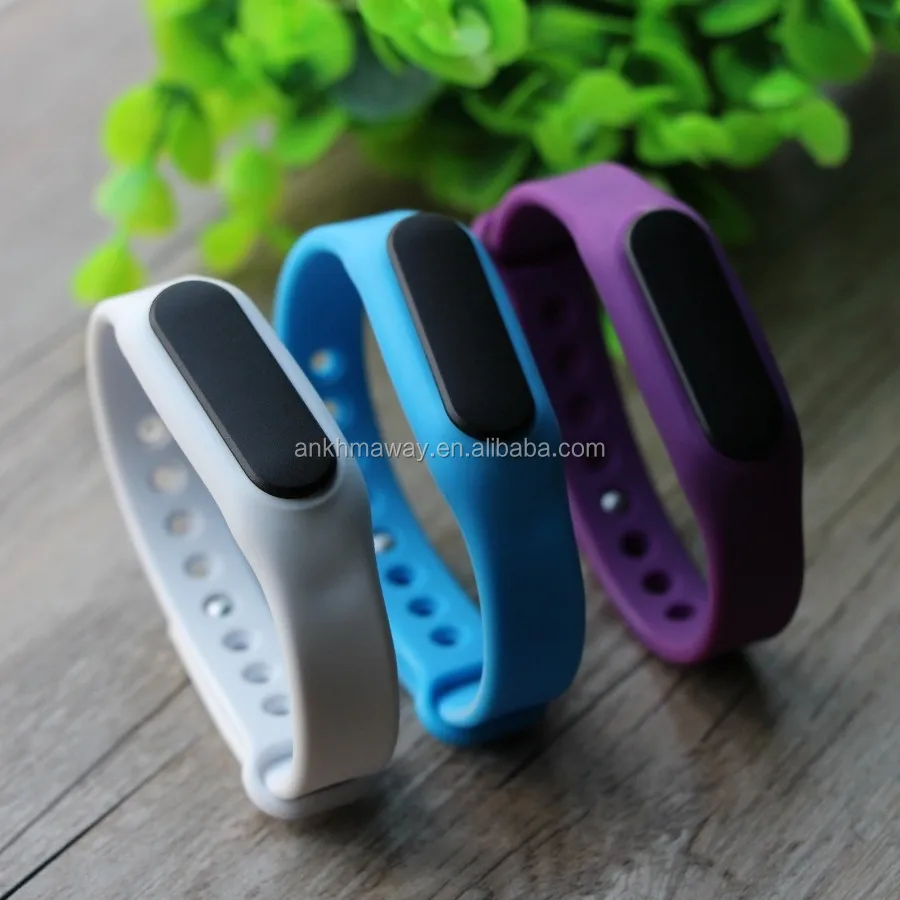

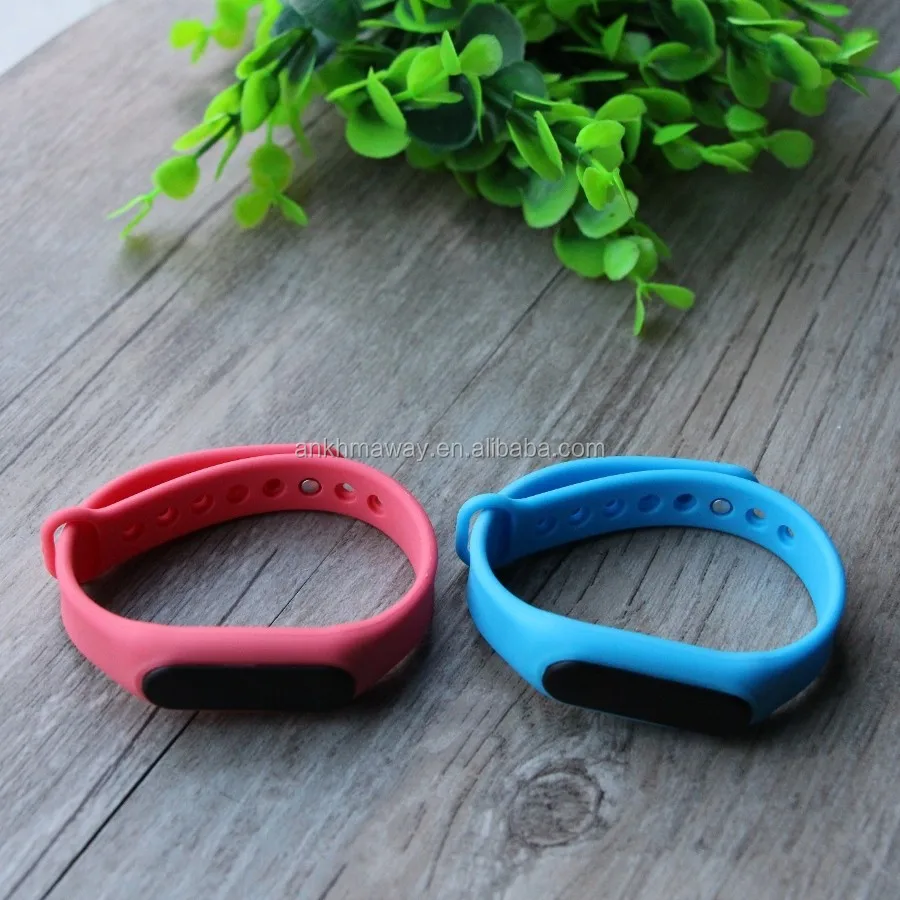

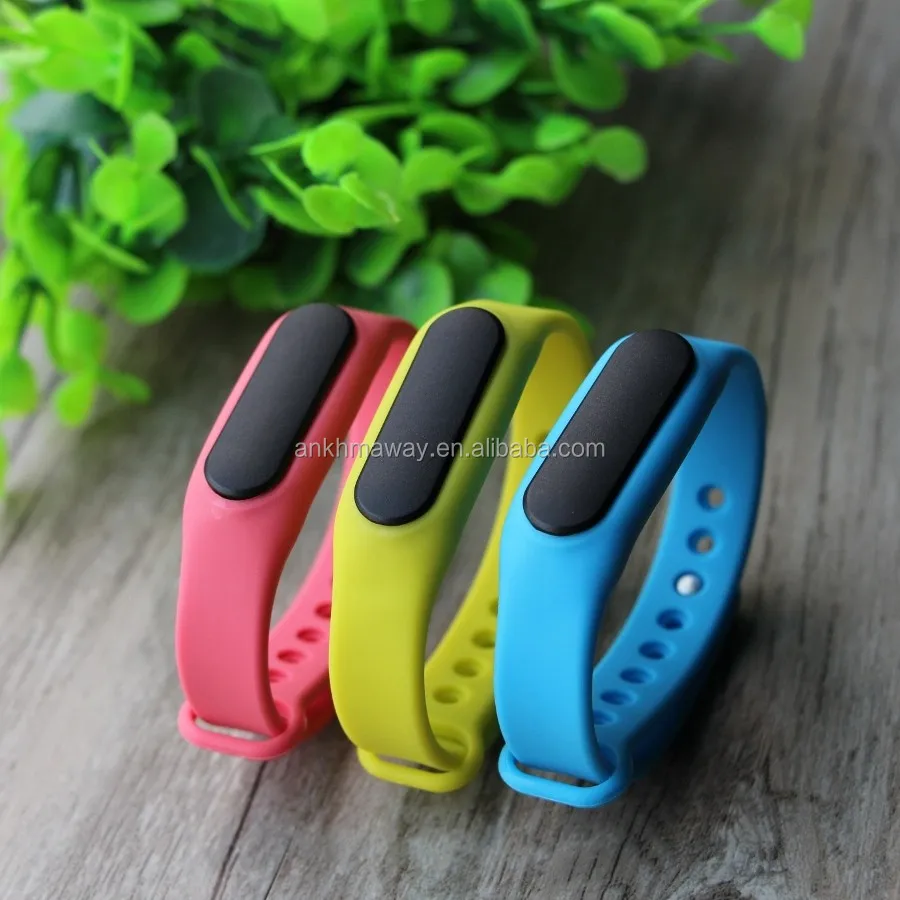

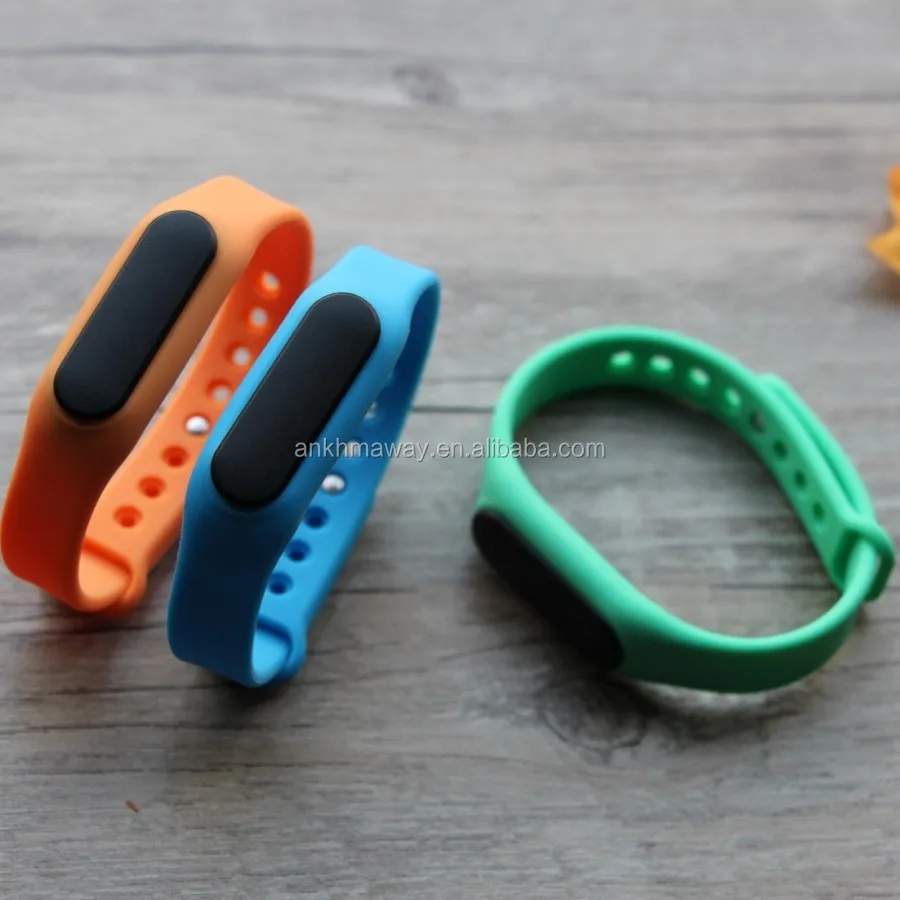

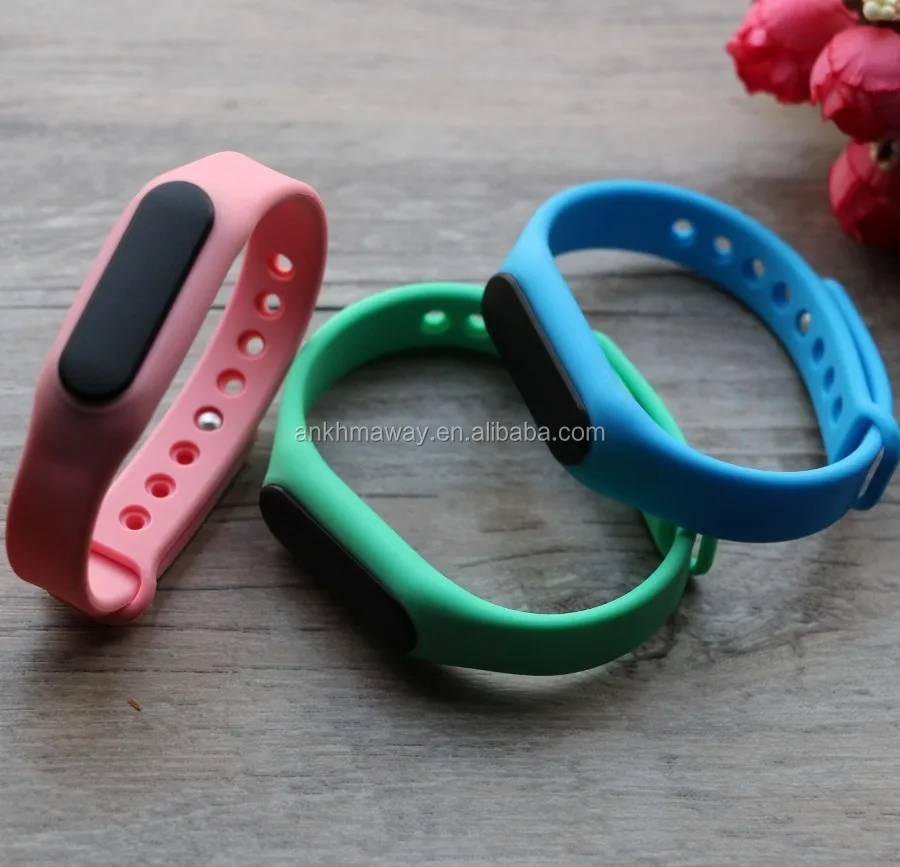

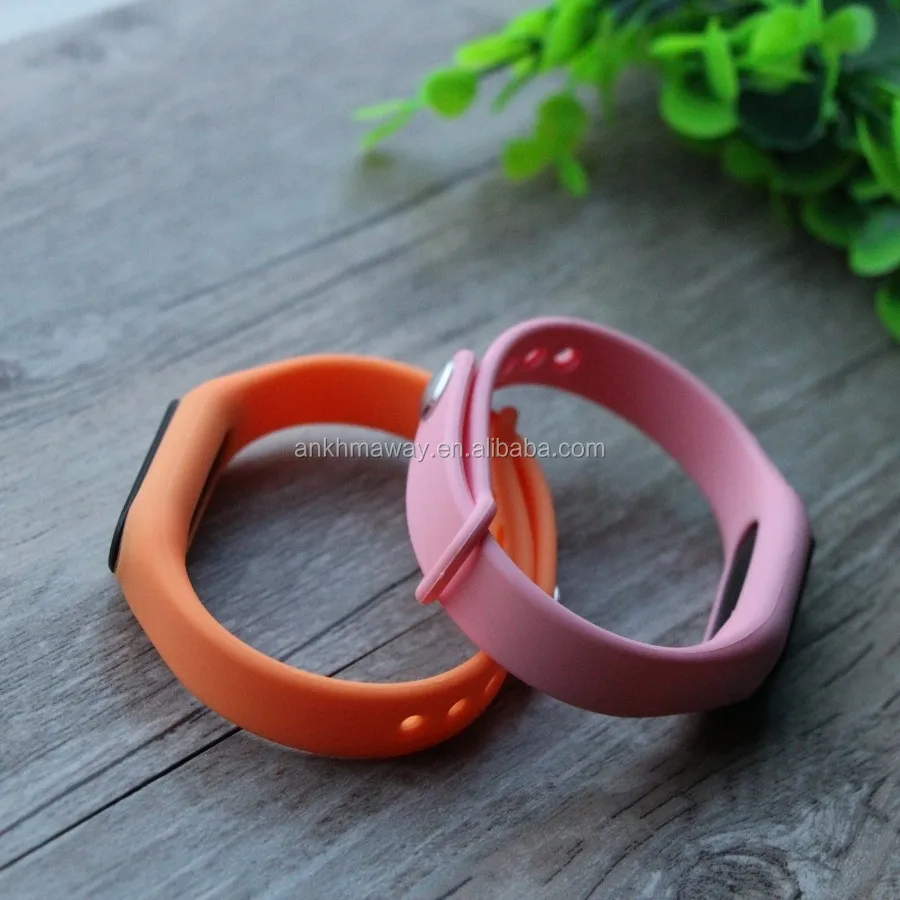

Ble Eddystone Beacon Silicon Wristband Vibration Sensor iBeacon

FOB Reference Price:Get Latest Price
US $9-20 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
10000 Piece/Pieces per Week
Port:
Shenzhen
Contact Supplier Start Order
Loading... Place Sample Order
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
iBeTag
Model Number:
iB001W
Product Name:
ble beacon silicon wristband
Chipset:
Nordic nrf51822
Bluetooth range:
20m in open air
Sensor:
Accelerometer
Product size:
23*2* 0.8cm
Battery Type:
Rechargeable battery
Certificates:
CE/FCC/ROHS/MFI
Application:
iOS7.0 above with tool APP & Andriod BLE 4.0 above with SDK
Development Kits:
IOS SDK and Android Source Code
Working Time:
1 month based on broadcasting rate 1s' every charge
Packaging & Delivery
Packaging Details
Carton Packing
Delivery Time
Shipped in 3 days after payment
Video Description
iBeacon Feature

Ble Eddystone Beacon Silicon Wristband Vibration Sensor iBeacon

Support iBeacon and Eddystone

Built-in Beacon firmware, compatible with BLE.
Built-in a coin battery (CR2016 or CR2032 or CR2450 or CR2477).
All the parameters can be configured (UUID, Major, Minor, Measured Power, TX Power, etc.)
We will provide you with a tool APP and API document to configure beacon data, and IOS/Android SDK and Android Source Code to develop your APP.
Encrypted parameter, a password is needed when access to configure.
Support the background management of battery.

iBeacon Parameters
Item
Test Data
Remarks
Chip
NRF51822
Nordic
Battery model
Rechargeable
Null
Operation Voltage
2.0-3.6V
DC
Operation Frequency
2400-2483.5MHz
Programmable
Frequency Error
+/- 20KHz
Null
Modulation
Q-QPSK
Null
Standby current
12uA
Null
Output Power
4 dBm - -40dBm
Programmable
Receiving Sensitivity
-93dBm
High gain mode
Transmission distance
20m
BER<0.1%, Open space
Antenna
50ohm
Onboard
State
Operation Current (uA)
Sleeping Mode
3.6
Connectable Mode
142
Non-Connectable Mode
22.5
Detailed Images
Certifications
Our Service

Case customization
For the bulk purchase consumer, we provide the case customization and even the hardware design just for your customized housing

Logo printing customization
We can print your own logo on the case in any color (Gradient color will relatively cost more).

Firmware customization
We provide the firmware customization.you can change the UUID, major, minor and other parameters.

Other Models

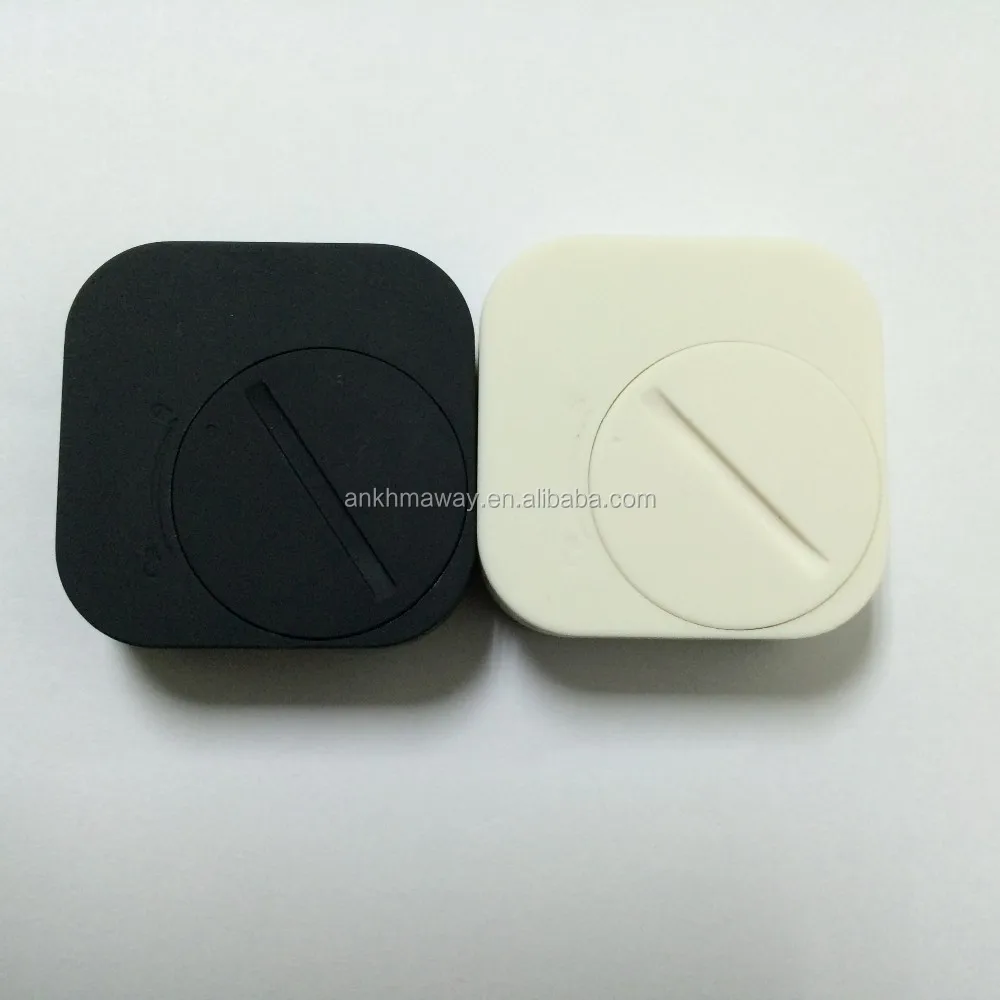

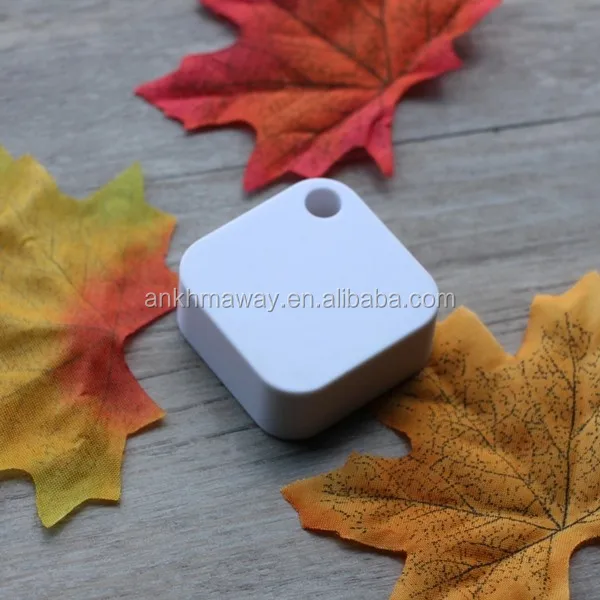

AKMW-iB004N

Bluetooth range: 75m
Battery type: CR2450
Working time: 30 months based on broadcasting rate 1second
Size: 40*40*13.5mm
Chipset: N51822 256KB.

AKMW-iB003N

Bluetooth range: 100m
Battery type: CR2477
Working time: 58monthsbased on broadcasting rate 1second
Size: 42.3mmx42.3mmx13.4mm
Chipset: N51822 256KB

AKMW-iB001N

Bluetooth range: 20-30m
Battery type: CR2032
Working time: 12 months based on broadcasting rate 1second
Size: 27*7.6mm
Chipset: N51822 256KB.

AKMW-iB004N PLUS

Bluetooth range: 100m
Battery type: CR2477
Working time: 58 months based on broadcasting rate 1second
Size: 40*40*16.5mm
Chipset: N51822 256KB

AKMW-iB001M

Bluetooth range: 70m
Battery type: CR2016
Working time: 10 months based on broadcasting rate 1second
Size: 40.3mm x 23.9mm x 2.6mm
Chipset: N51822 256KB

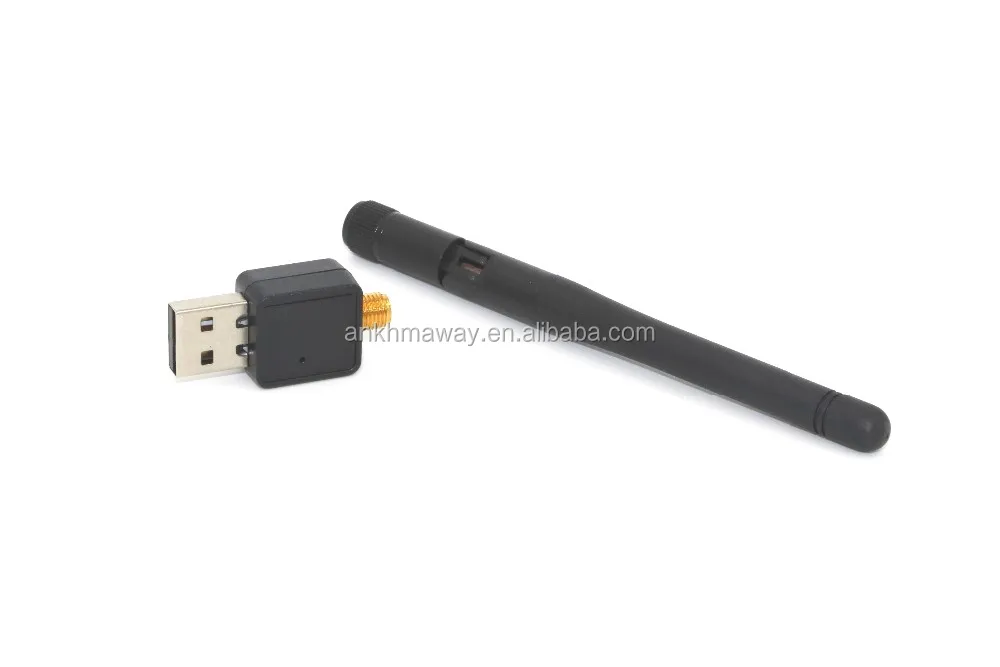

AKMW-iB005N-SMA

Bluetooth range: 130m
Powered by: USB adapter
Size: 19*15*6mm
Chipset: N51822 256KB

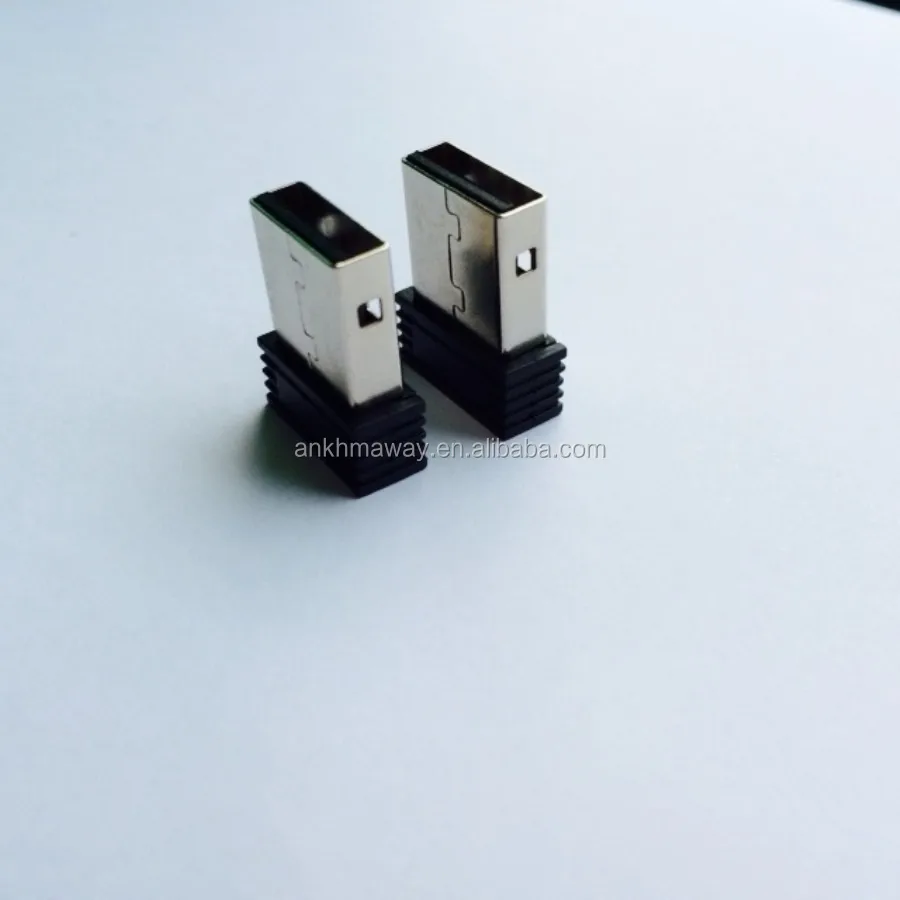

AKMW-iB005N

Bluetooth range: 40m
Powered by: USB adapter
Size: 19*15*6mm
Chipset: N51822 256KB
