Ble 4.0 Long Range Bluetooth iBeacon Anti Lost Alarm With SDK

FOB Reference Price:Get Latest Price
US $5-11 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
iBeTag
Model Number:
iB004N
Product Name:
iBeacon
Working time:
30 months based on broadcasting rate 1s'
Chipset:
Nordic nrf51822
Bluetooth range:
75m in open air
PCB size:
34*34*7.5mm
Housing size:
40*40*13.5mm
Battery:
CR2450
Certificates:
CE/FCC/ROHS/MFI
Application:
iOS7.0 above with tool APP & Andriod BLE 4.0 above with SDK
Weight:
30G
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Carton Packing
Port
Shenzhen
Lead Time :
Shipped in 3 days after payment
Video Description
Interested ? Send us inquiry Now! ♥






















iBeacon Description



iBeacon can work as an independent system, and lithium batteries supply power for these models.

It has 3 different working modes, sleep mode, connectable mode and non-connectable mode.

It makes the best use of the battery power. For example, it can standby over 5(CR2032) or 16(CR2450)

years when work in sleeping mode, much longer than the life of the battery.

For developers, we provide the Android and IOS SDK, and all the interface developed completely by us,

all of the parameters can be reconfigured, including Proximity UUID, Major, Minor and Power.

In order to meet different customers’ needs, interval rate can also be configured, which ranges

from 100 ms to 10 s.

Besides, hardware TX power can be configured, and configurable range is 4 dBm to -40 dBm.

Encrypted parameter, a password is needed when access to configure.

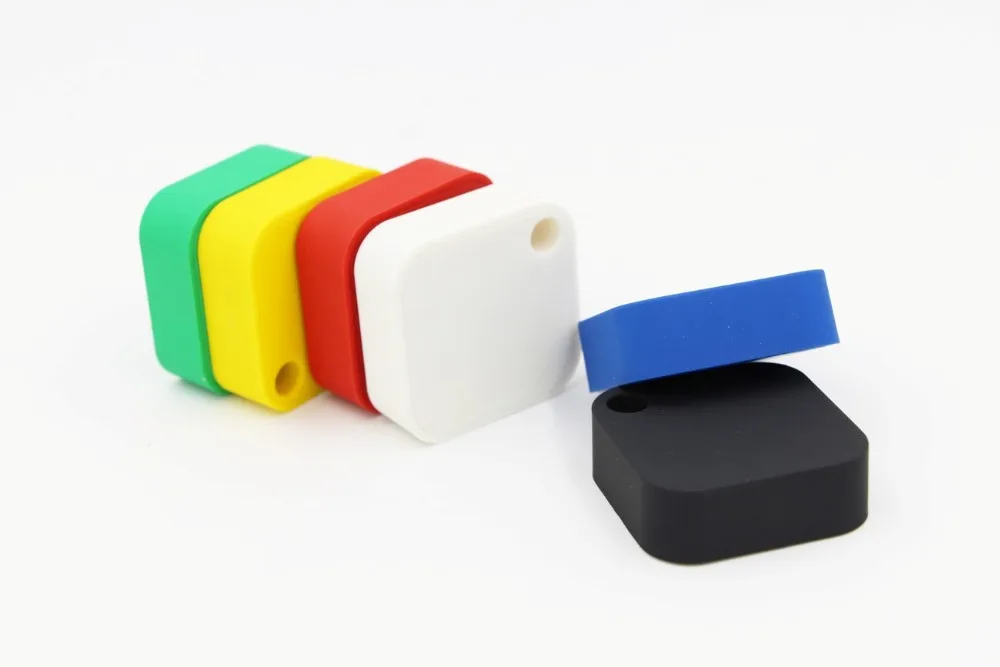

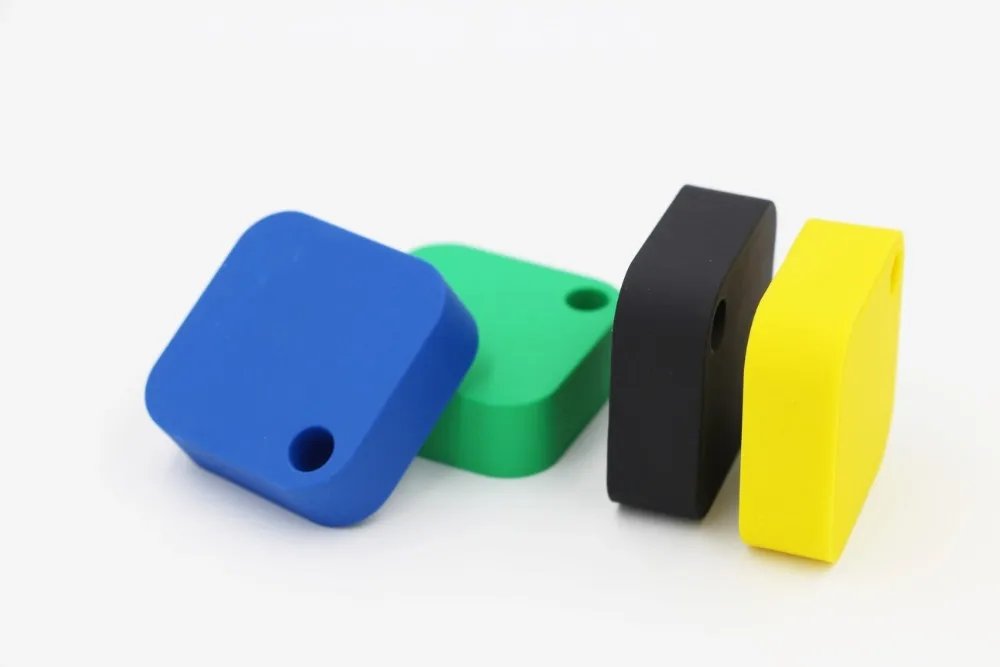

iBeacon Photos















iBeacon Parameters

Item

Test Data

Remarks

Chip

NRF51822

Nordic

Battery model

CR2450

Coin battery, 3.0Vdc, 1pc

Operation Voltage

2.0-3.6V

DC

Operation Frequency

2400-2483.5MHz

Programmable

Frequency Error

+/- 20KHz

Null

Modulation

Q-QPSK

Null

Standby current

12uA

Null

Output Power

4 dBm - -40dBm

Programmable

Receiving Sensitivity

-93dBm

High gain mode

Transmission distance

75meters

BER<0.1%, Open space

Antenna

50ohm

Onboard



Operation state and power consumption

State

Operation Current (uA)

Sleeping Mode

3.6

Connectable Mode

142

Non-Connectable Mode

22.5







Customization



Case customization
For the bulk purchase consumer, we provide the case customization and even the hardware design just

for your customized housing



Logo printing customization
We can print your own logo on the case in any color (Gradient color will relatively cost more).



Firmware customization
We provide the firmware customization.you can change the UUID, major, minor and other parameters.









Application




























































Certifications



CE.jpg ROHS.jpgFCC-1.jpgFCC-2.jpg




About US

Ankhmaway offers complete indoor Bluetooth BLE solutions for indoor navigation with beacon tag

hardware and open Interface to support any indoor navigation deployment

We offer stand-alone tags and services or complete professional services, engineering,

and custom beacon tag designs. You can do everything you want without any limit of us.

For the development documents matters, please contact us.
