300m Long Range Waterproof Ble 4.0 Programable ibeacon With Accelerometer Sensor

FOB Reference Price:Get Latest Price
US $10-20 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
iBeTag
Model Number:
iB003N-PA
Product Name:
Long Range iBeacon
Battery:
CR2477
Battery life:
4~5 months based on broadcasting rate 1 second
Waterproof rate:
IP67
Range:
300M in open air
Demension:
42.3mm x42.3mm x13.4mm
Chipset:
Nordic nrf51822
Sensor:
Acceleration sensor
System Requirements:
iOS 7.0 & Android 4.3 Above
Color:
Black / White
Supply Ability
Supply Ability:
10000 Parcel/Parcels per Week
Packaging & Delivery
Packaging Details
Industrial Packing or Customized Single Unit Packing with design.
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(day) 30 To be negotiated
Video Description
Company Information
iBeacon Feature

100 meters IP67 Waterproof Bluetooth 4.0 Accelerometer NRF51822 iBeacon

•Support iBeacon features.
•Support Eddsytone Beacon features.
•Support BLE4.0 protocol.
•Support to broadcast ibeacon, eddystone, sensors data simultaneously.
•Support Motion-Triggered broadcast.
•Motion Detection.
•Position Detection


•Get the acceleration value without connecting.
•Intelligent power management
•Support intelligent activation
•Support intelligent working mode switching
•With Acceleration Sensor
•Temperature, pressure, gyro, and other sensors optional
•Support OAD
•90dB buzzer
•Vibrator

iBeacon Parameters
Item
Test Data
Remarks
Chip
NRF51822
Nordic
Battery model
CR2477
Null
Operation Voltage
2.0-3.6V
DC
Operation Frequency
2400-2483.5MHz
Programmable
Frequency Error
+/- 20KHz
Null
Modulation
Q-QPSK
Null
Standby current
12uA
Null
Output Power
4 dBm - -40dBm
Programmable
Receiving Sensitivity
-93dBm
High gain mode
Transmission distance
300m
BER<0.1%, Open space
Antenna
50ohm
Onboard
State
Operation Current (uA)
Sleeping Mode
3.6
Connectable Mode
142
Non-Connectable Mode
22.5

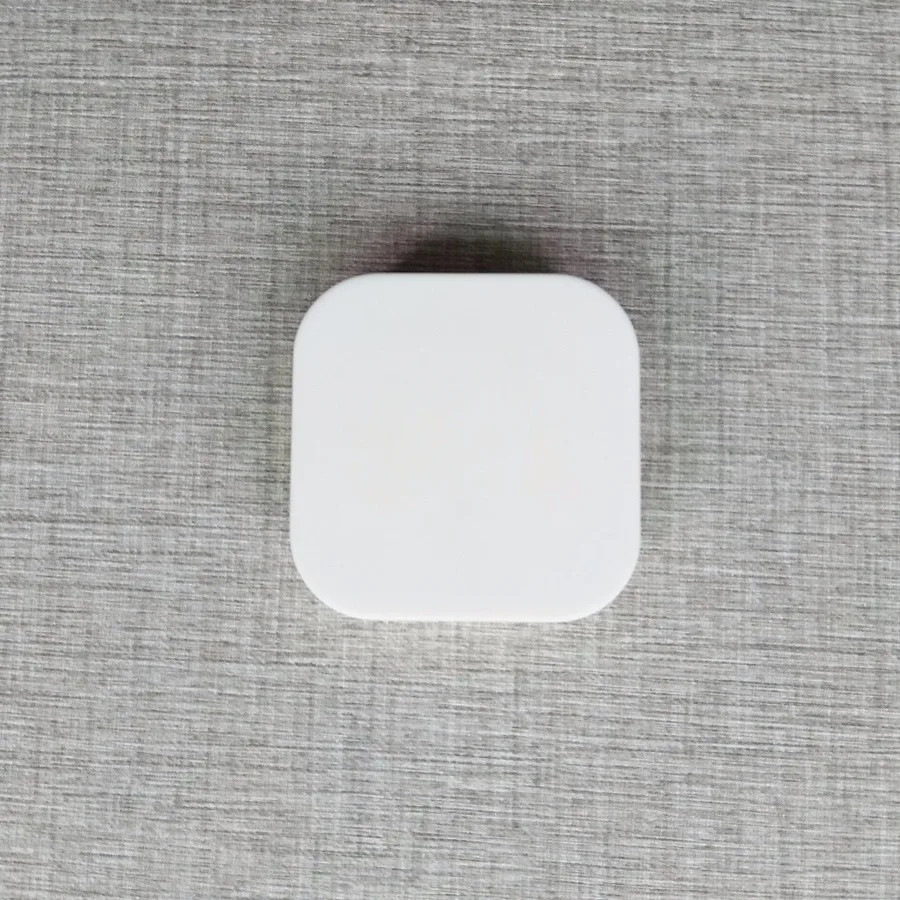

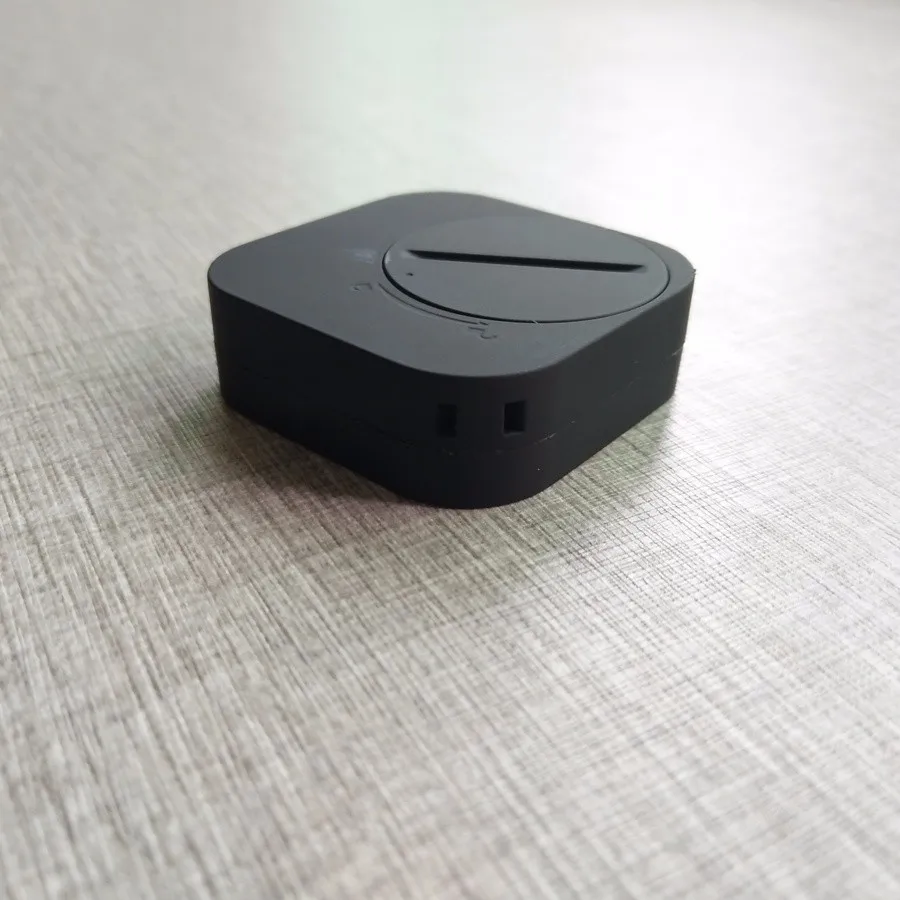

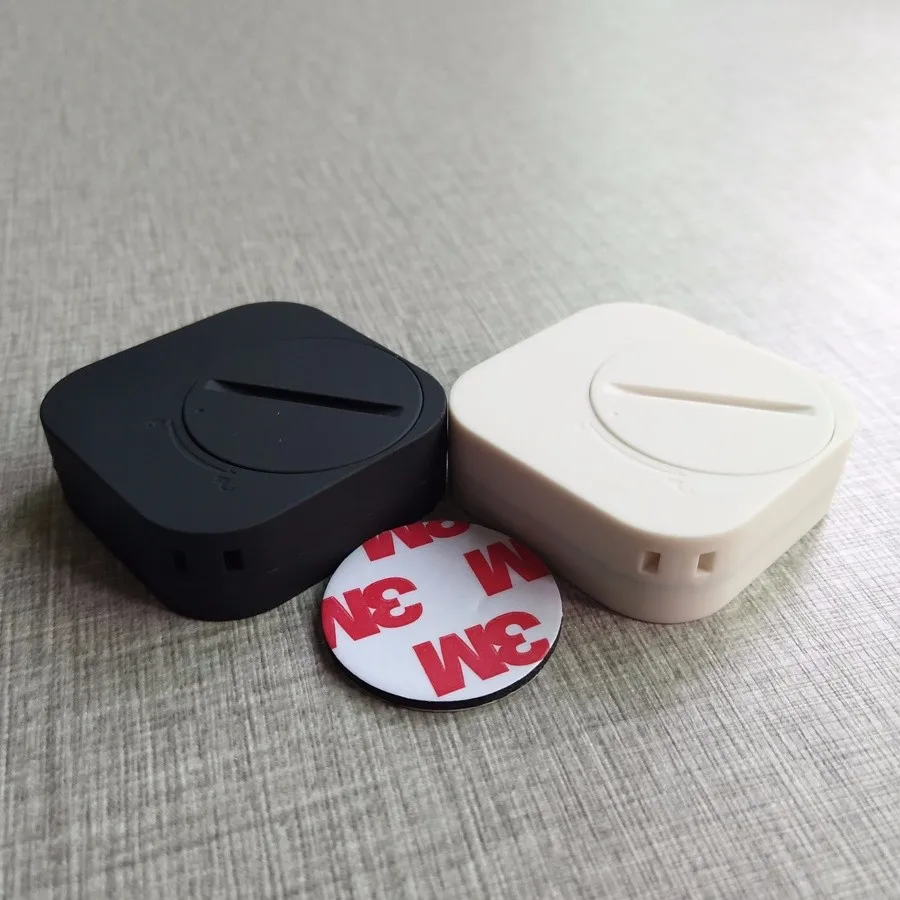

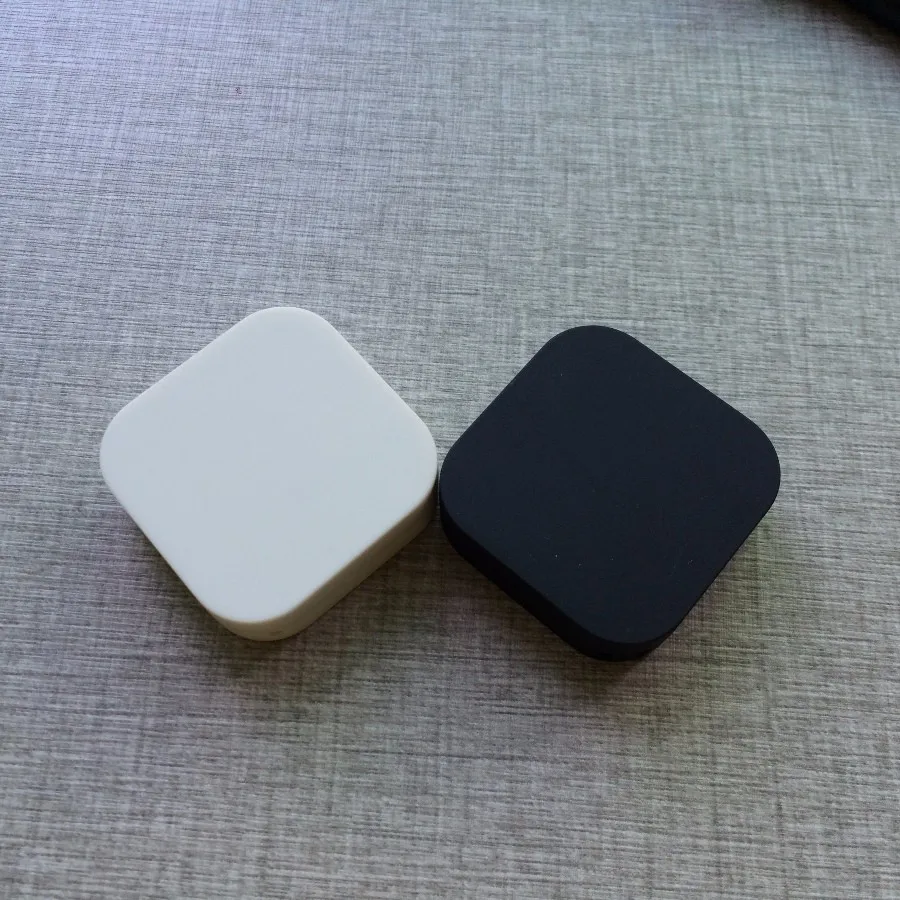

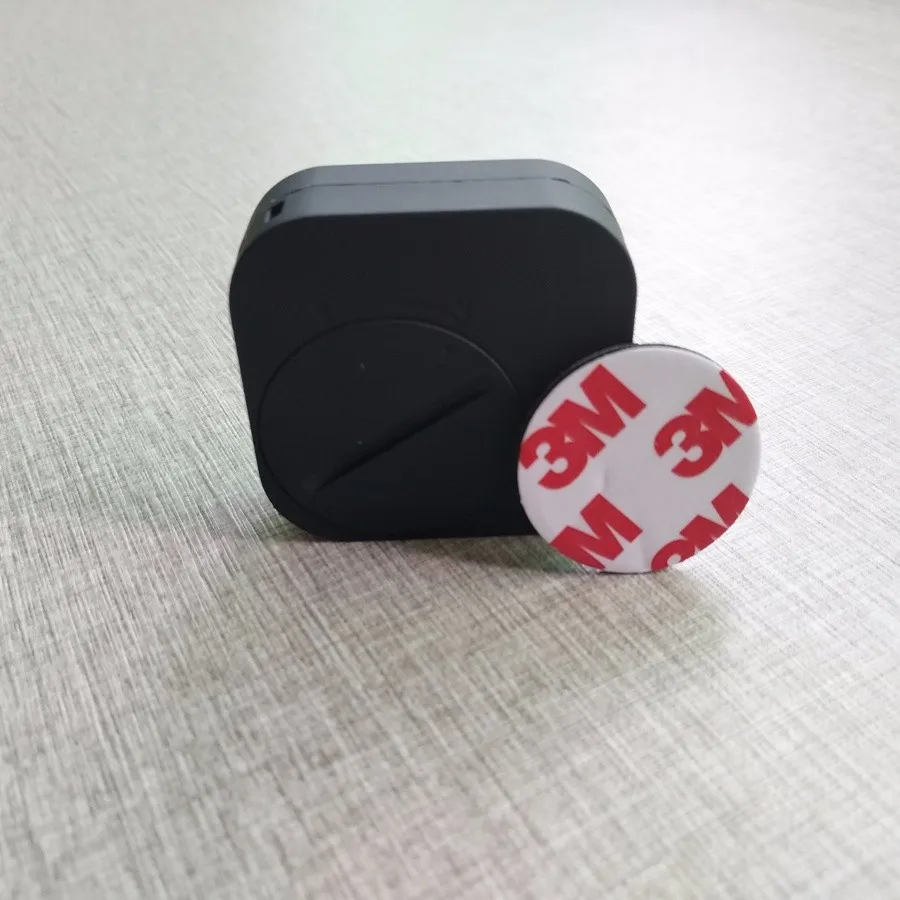

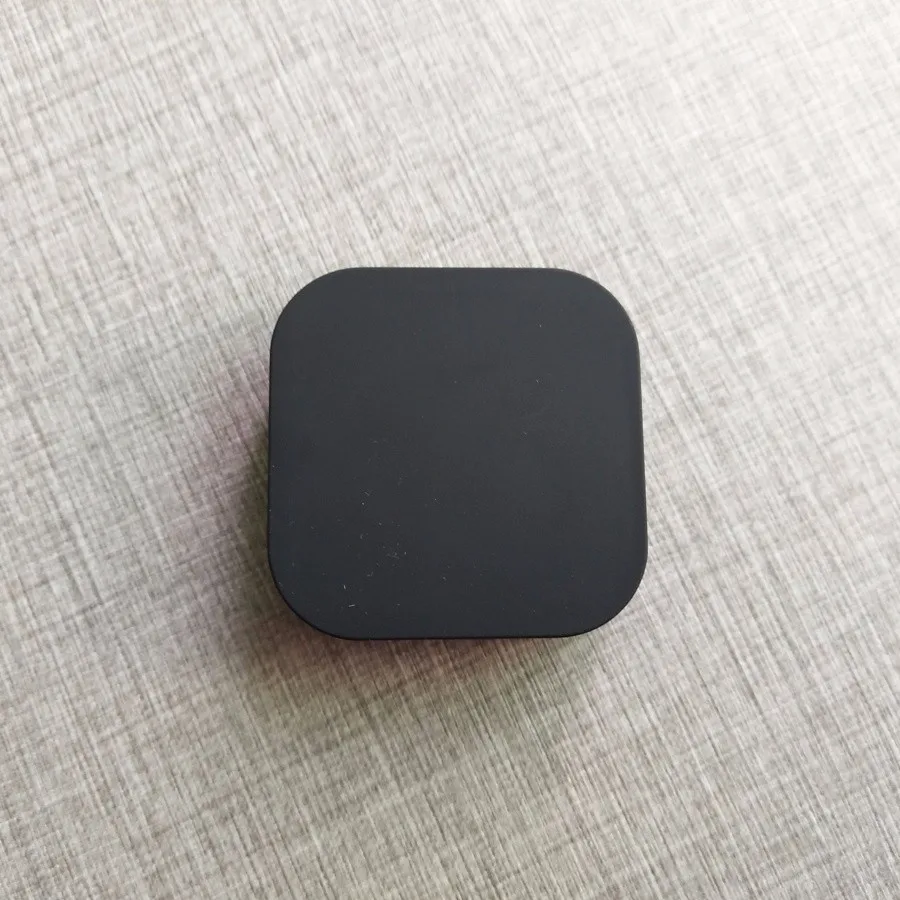

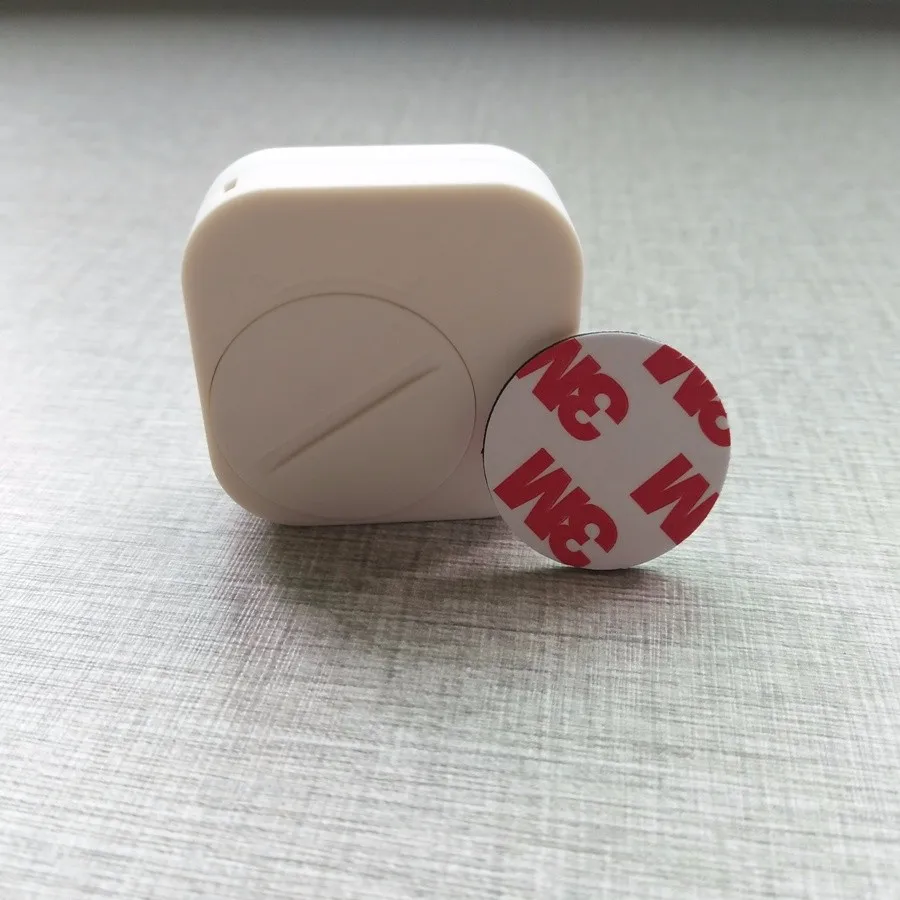

Detailed Images

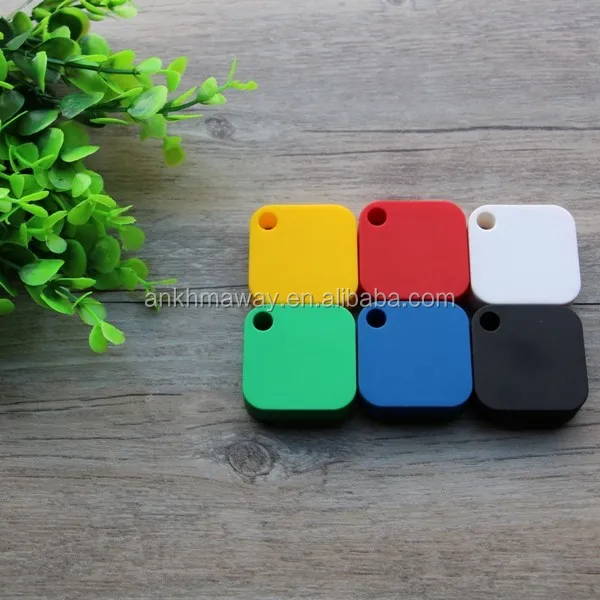

Other Models

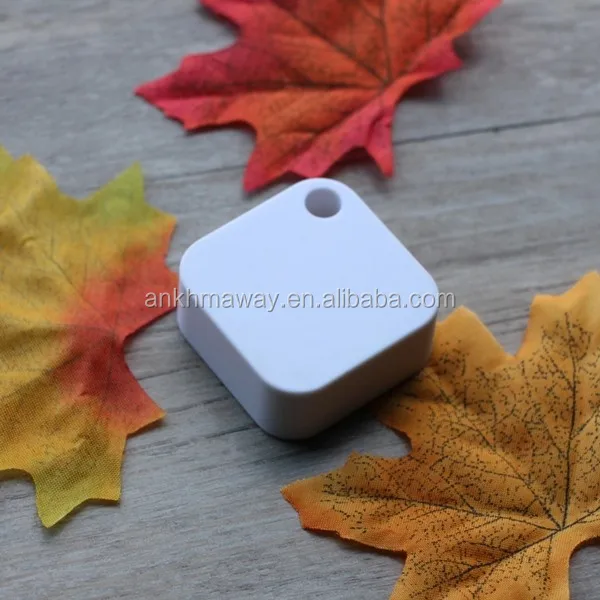

iB004N

Bluetooth range: 75m
Battery type: CR2450
Working time: 30 months based on broadcasting rate 1second
Size: 40*40*13.5mm
Chipset: N51822 256KB.

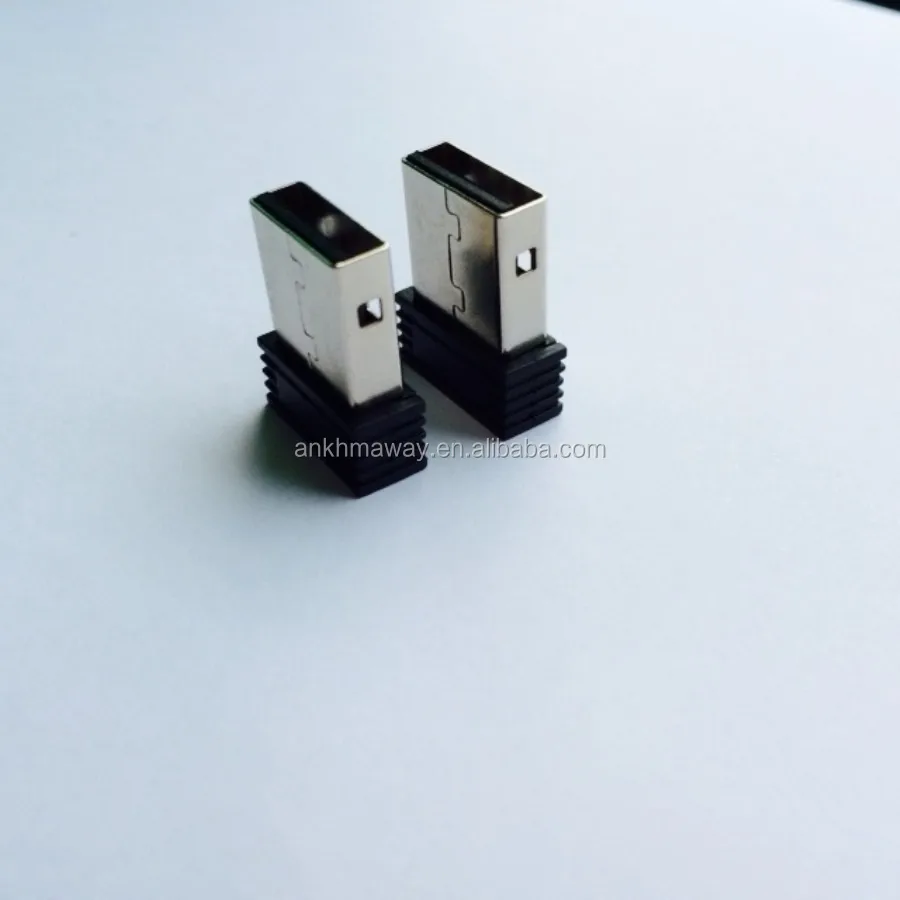

iB005N

Bluetooth range: 40m
Powered by: USB adapter
Size: 19*15*6mm
Chipset: N51822 256KB

iB001N

Bluetooth range: 20-30m
Battery type: CR2032
Working time: 12 months based on broadcasting rate 1second
Size: 27*7.6mm
Chipset: N51822 256KB

iB004N PLUS

Bluetooth range: 100m
Battery type: CR2477
Working time: 58 months based on broadcasting rate 1second
Size: 40*40*16.5mm
Chipset: N51822 256KB

iB006N

Bluetooth range: 130m
Battery type: Rechargeable Battery optional
Size: 18*58*85mm
Chipset: N52832

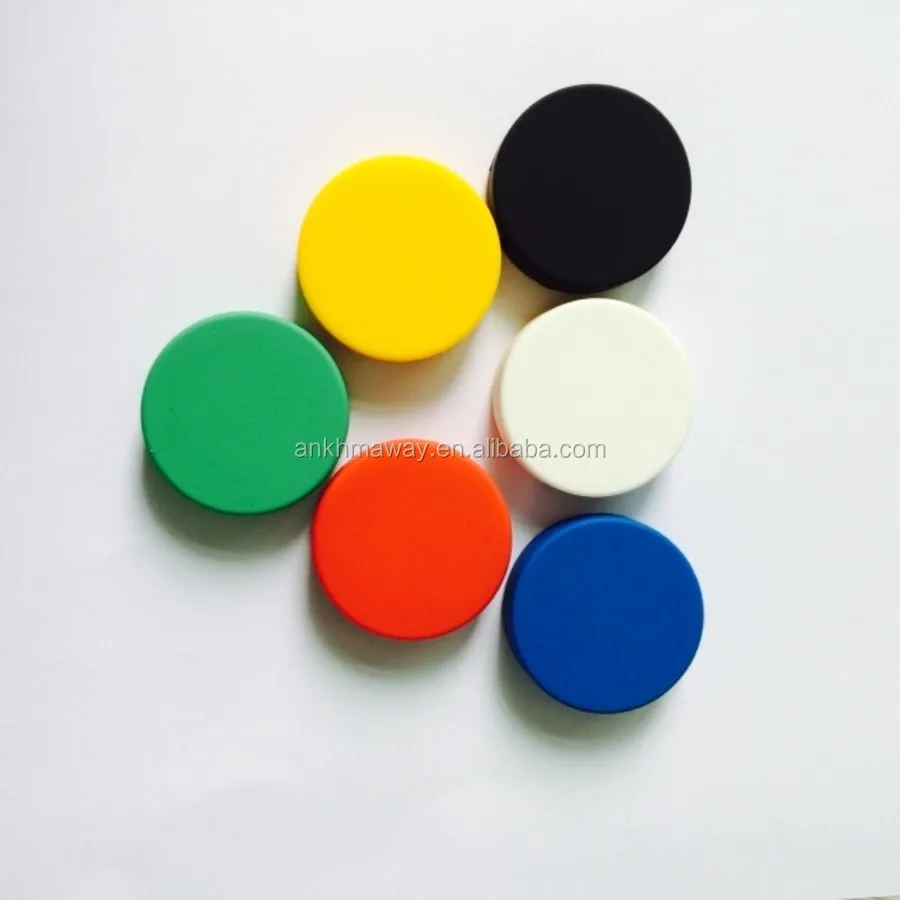

iB001M

Bluetooth range: 70m
Battery type: CR2016
Working time: 10 months based on broadcasting rate 1second
Size: 40.3mm x 23.9mm x 2.6mm
Chipset: N51822 256KB

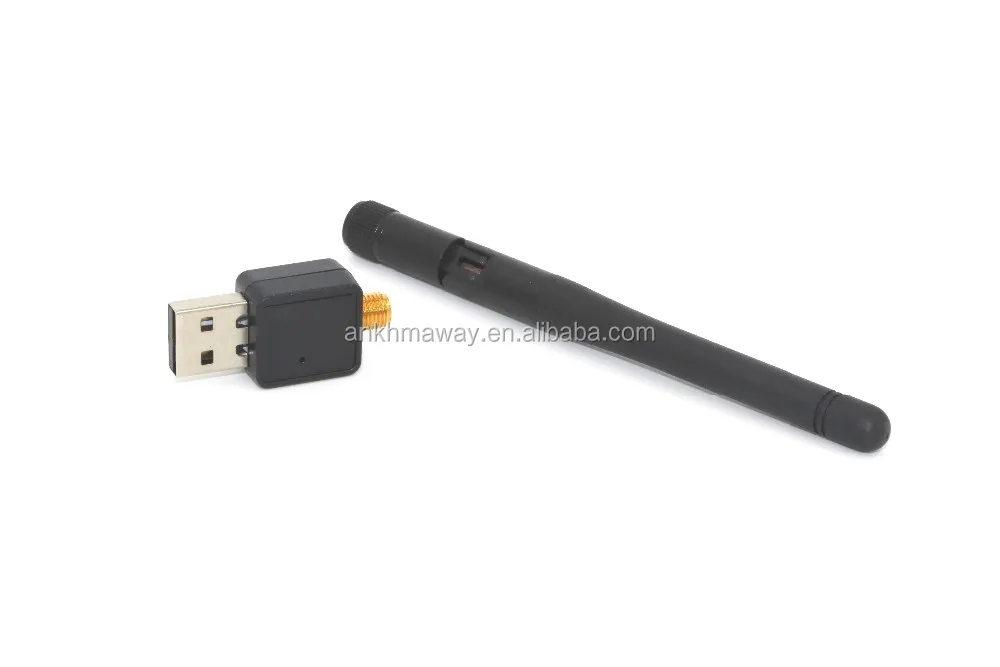

iB005N-SMA

Bluetooth range: 130m
Powered by: USB adapter
Size: 19*15*6mm
Chipset: N51822 256KB

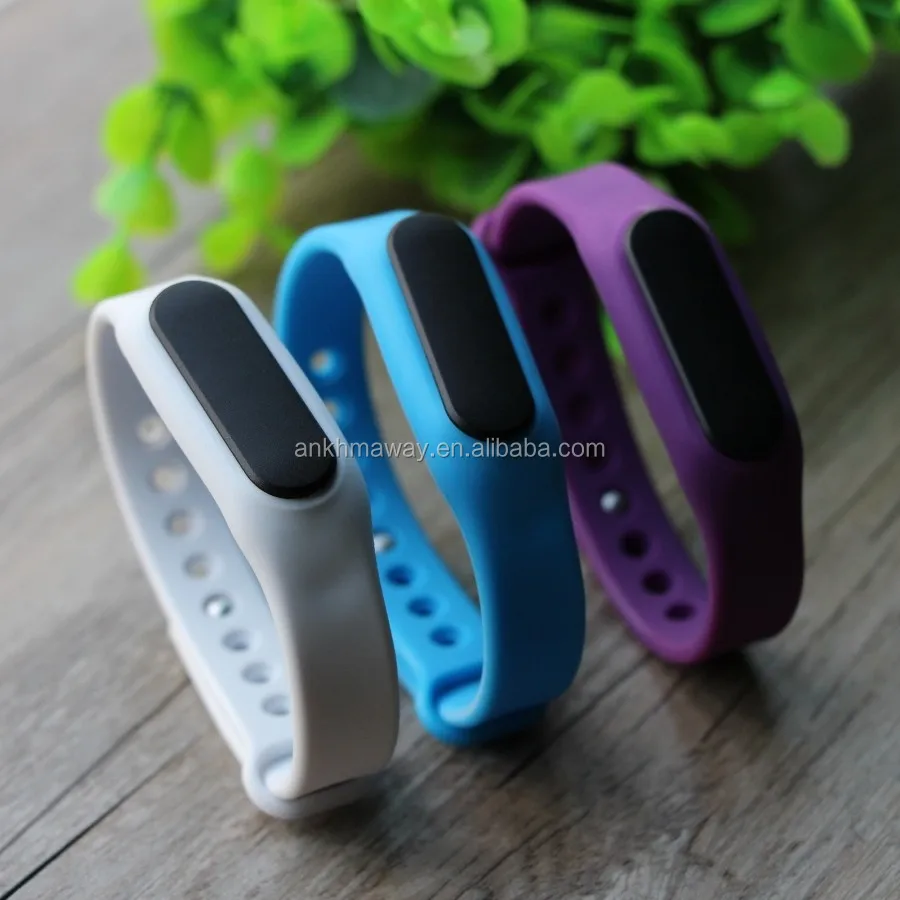

iB001W

Features: iBeacon data, but Eddystone data is optional
Chipset: N51822 256KB
Bluetooth range: 20m in open air
Battery type: Rechargeable battery
Working time: 1 month based on broadcasting rate 1s every charge
With Vibrator and LED
Color: black, blue, pink, orange, red

FAQ

Q1. Do you provide the technical support to the developers?
Re: Sure. After you place an order and get the beacons, we will provide tool APP with API document, and iOS/Android SDK and Android Source Code for your programming.

Q2. Can we brand your product with our company LOGO?
Re: Yes, we will provide customization including logo printing, tooling design for housing, firmware customization, PCB re-design, etc.

Q3. How can we get the samples to test?
Re: You can submit an order in Alibaba or contact us directly. All of the samples can be supplied from stock. Samples will be sent within 1-5 days after paid.

Q4. How will you deliver my goods to me?
A: We always ship samples order and MOQ order by Express ( Door To Door), such as DHL,UPS,Fedex... to enable our customers to get their goods rapidly. We can ship mass order by Air, or Sea, or Express, according to customers' choice.

Q5. What's the warranty of the product?
Re: We supply 6 months warranty from the shipping date if it is quality issue.

Q6. What is the lead time of your products?
A: 1-5 business days for samples order, 7-15 days for MOQ order, 10-30 days for mass production orders (based on different quantities)..

Q7. What is your product quality?
A: We have a QA team to guarantee our products quality. All beacons are 100% manually checking.

About Us
Our Service
Case customization
For the bulk quantity, we provide the case customization and even the eletronic design for your customized housing only.

Logo printing customization
We can print your own logo on the case in any color .

Firmware customization
We provide the firmware customization according to your requirements.
