Ble 4.0 iBeacon nrf51822 with Temperature Sensor CR2477 Battery

FOB Reference Price:Get Latest Price
US $10-20 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
10000 Piece/Pieces per Week
Port:
Shenzhen
Contact Supplier Start Order
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
iBeTag
Model Number:
iB003N-SHT
Product Name:
Beacon
Battery:
CR2477
Waterproof rate:
IP67
Range:
100M in open area
Product Size:

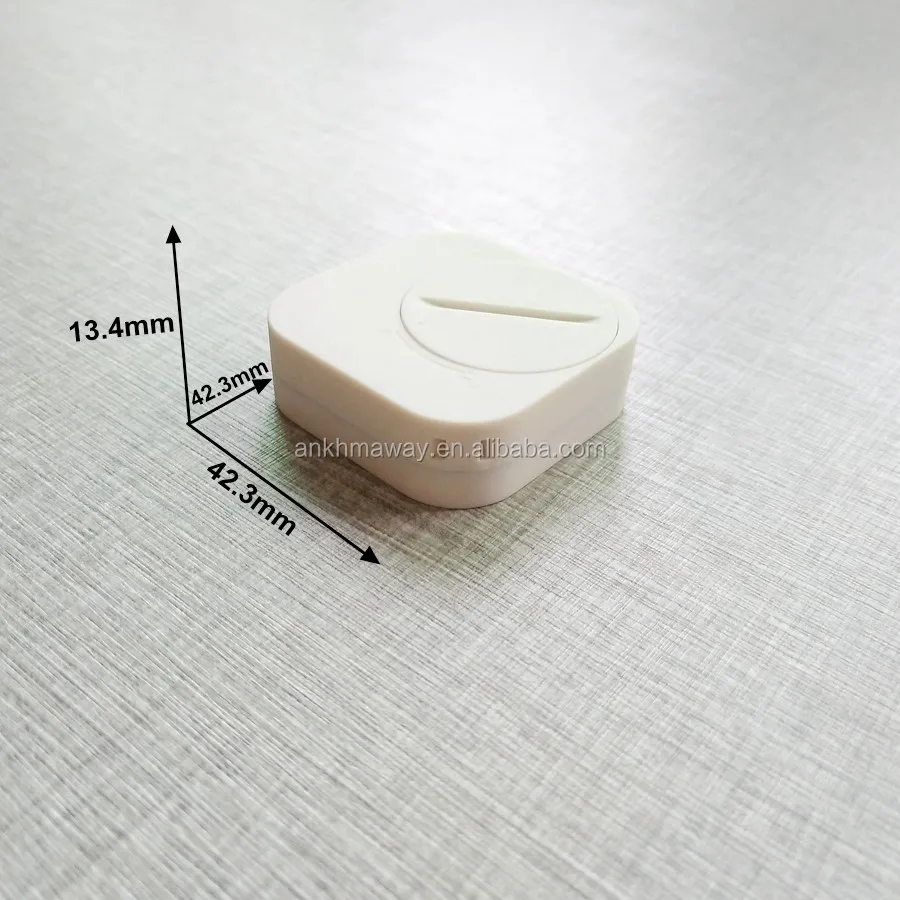

42.3mm x42.3mm x13.4mm
Application:
iOS7.0 above with tool APP & Andriod BLE 4.0 above with SDK
Certificates:
CE/FCC/ROHS/MFI
Working Time:
58 months based on broadcasting rate 1s'
Chipset:
Nordic nrf51822
Color:
Black & White
Packaging & Delivery
Packaging Details
Carton Packing
Delivery Time
Shipped in 3 days after payment
Video Description
iBeacon Feature

Ble 4.0 iBeacon nrf51822 with Temperature Sensor CR2477 Battery

•Support iBeacon features.
•Support Eddsytone Beacon features.
•Support BLE4.0 protocol.
•Support to broadcast ibeacon, eddystone, sensors data simultaneously.
•Support Motion-Triggered broadcast.
•Motion Detection
•Position Detection


•Get the acceleration value without connecting.
•Intelligent power management
•Support intelligent activation
•Support intelligent working mode switching
•With Acceleration Sensor
•Temperature, pressure, gyro, and other sensors optional
•Support OAD
•90dB buzzer
•Vibrator

iBeacon Parameters
Item
Test Data
Remarks
Chip
NRF51822
Nordic
Battery model
CR2477
Null
Operation Voltage
2.0-3.6V
DC
Operation Frequency
2400-2483.5MHz
Programmable
Frequency Error
+/- 20KHz
Null
Modulation
Q-QPSK
Null
Standby current
12uA
Null
Output Power
4 dBm - -40dBm
Programmable
Receiving Sensitivity
-93dBm
High gain mode
Transmission distance
100 meters
BER<0.1%, Open space
Antenna
50ohm
Onboard
State
Operation Current (uA)
Sleeping Mode
3.6
Connectable Mode
142
Non-Connectable Mode
22.5

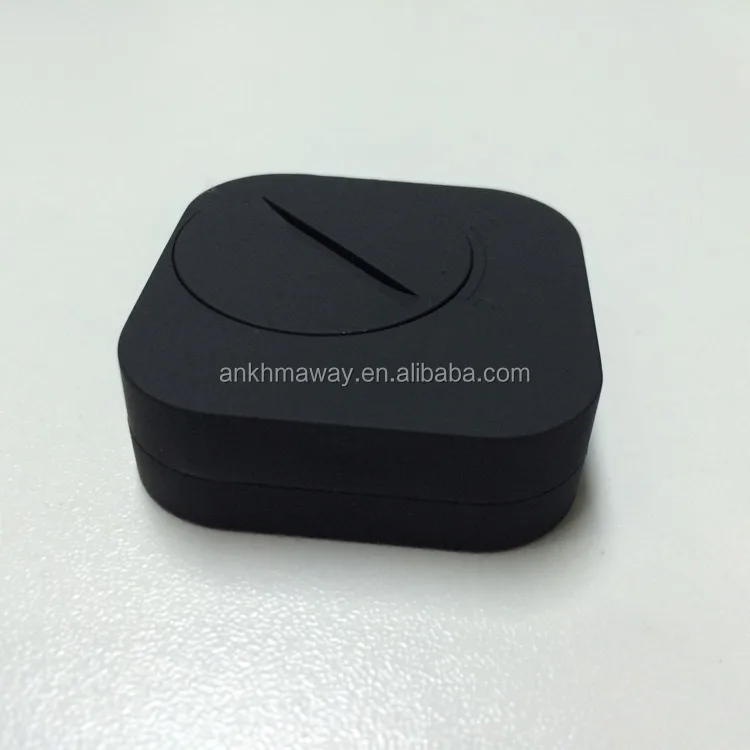

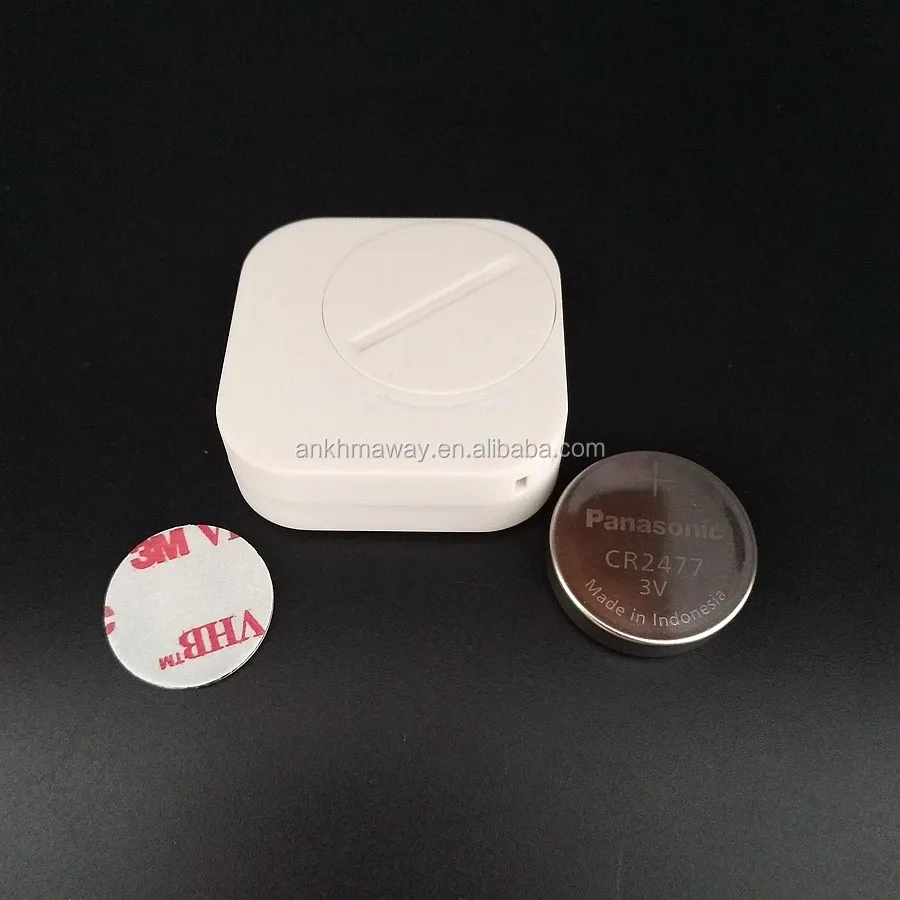

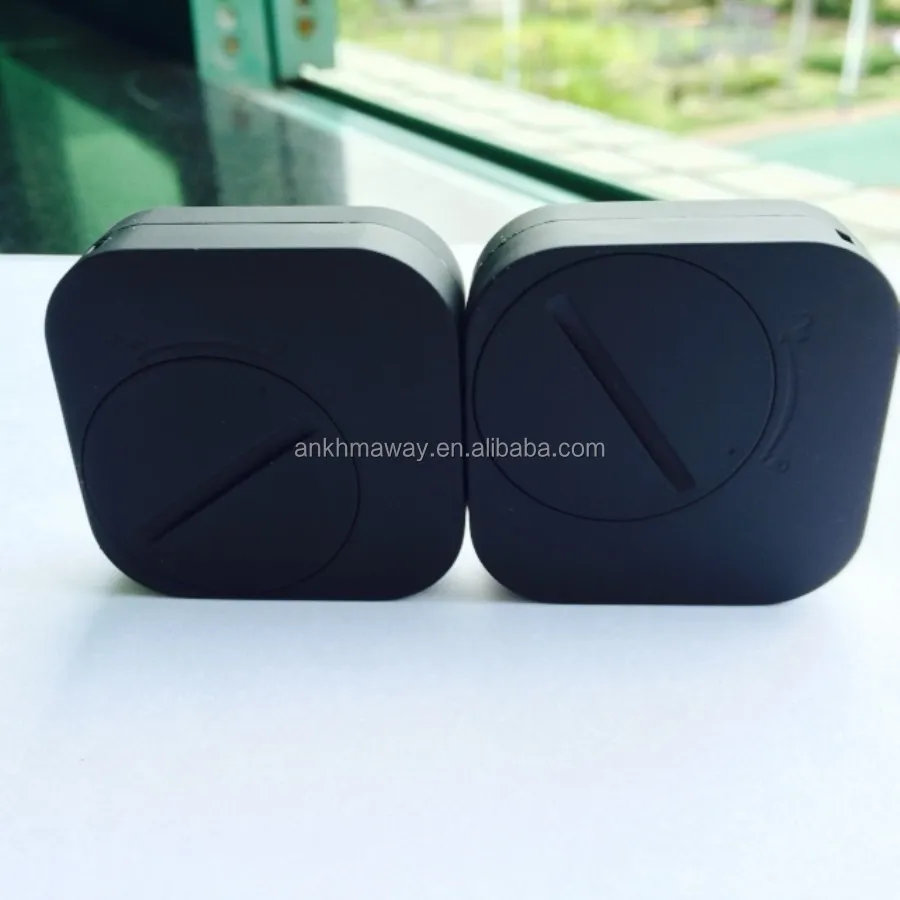

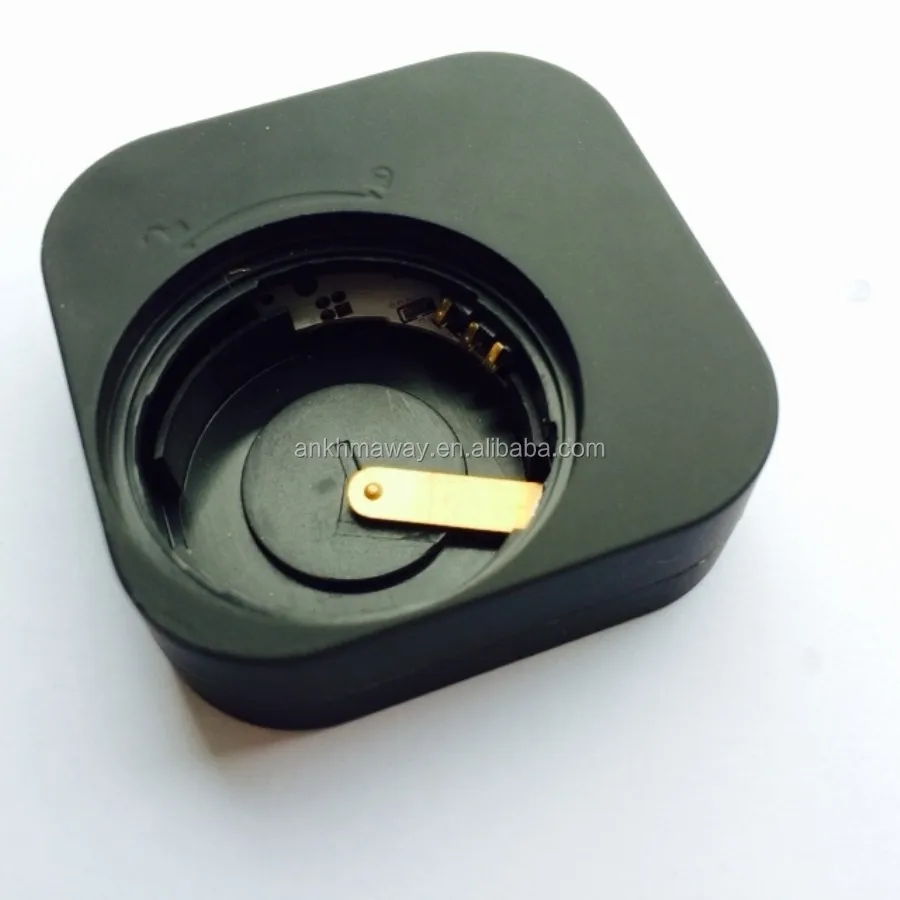

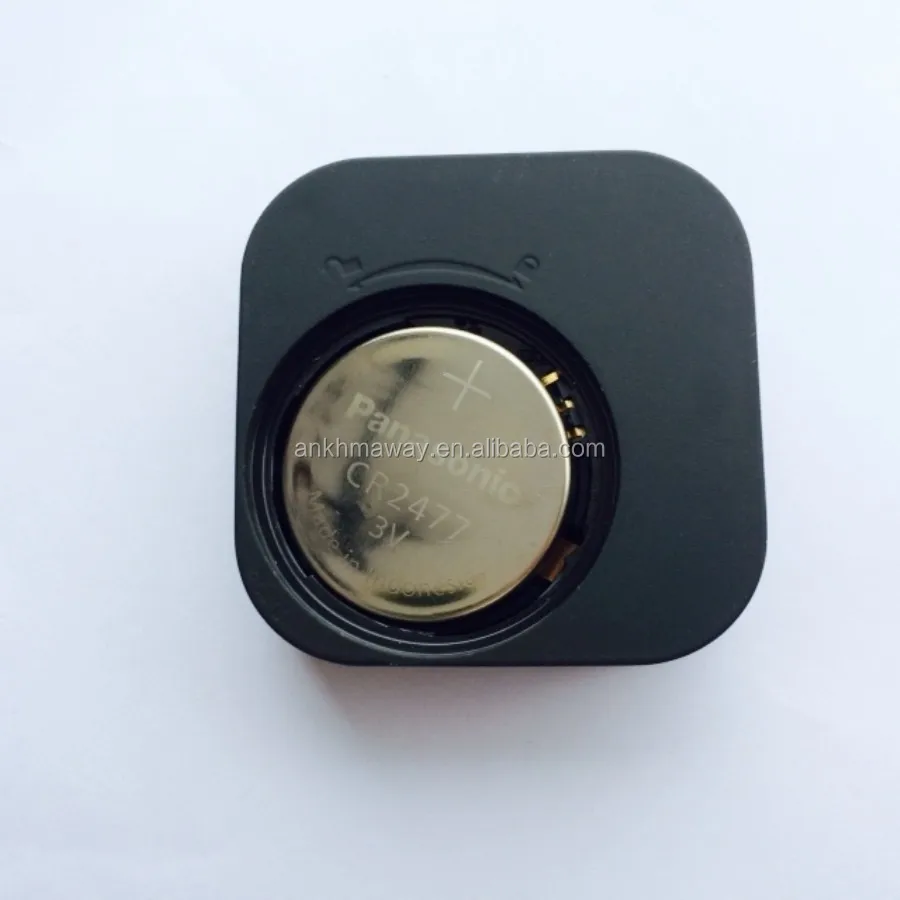

Detailed Images
Certifications
Our Service

Case customization
For the bulk purchase consumer, we provide the case customization and even the hardware design just for your customized housing

Logo printing customization
We can print your own logo on the case in any color (Gradient color will relatively cost more).

Firmware customization
We provide the firmware customization.you can change the UUID, major, minor and other parameters.

Other Models

AKMW-iB004N

Bluetooth range: 75m
Battery type: CR2450
Working time: 30 months based on broadcasting rate 1second
Size: 40*40*13.5mm
Chipset: N51822 256KB.

AKMW-iB001N

Bluetooth range: 40m
Battery type: CR2032
Working time: 12monthsbased on broadcasting rate 1second
Size: 27*7.6mm
Chipset: N51822 256KB

AKMW-iB005N

Bluetooth range: 40m
Powered by: USB adapter
Size: 19*15*6mm
Chipset: N51822 256KB

AKMW-iB004N PLUS

Bluetooth range: 100m
Battery type: CR2477
Working time: 58 months based on broadcasting rate 1second
Size: 40*40*16.5mm
Chipset: N51822 256KB

AKMW-iB001M

Bluetooth range: 50m
Battery type: CR2016
Working time: 4.63 months based on broadcasting rate 1second
Size: 40.3mm x 23.9mm x 2.6mm
Chipset: N51822 256KB

AKMW-iB005N-SMA

Bluetooth range: 130m
Powered by: USB adapter
Size: 19*15*6mm
Chipset: N51822 256KB

AKMW-iB001W

Features: iBeacon data, but Eddystone data is optional
Chipset: N51822 256KB
Bluetooth range: 20m in open air
Battery type: Rechargeable battery
Working time: 1 month based on broadcasting rate 1s every charge
With Vibrator and LED
Color: black, blue, pink, orange, red
