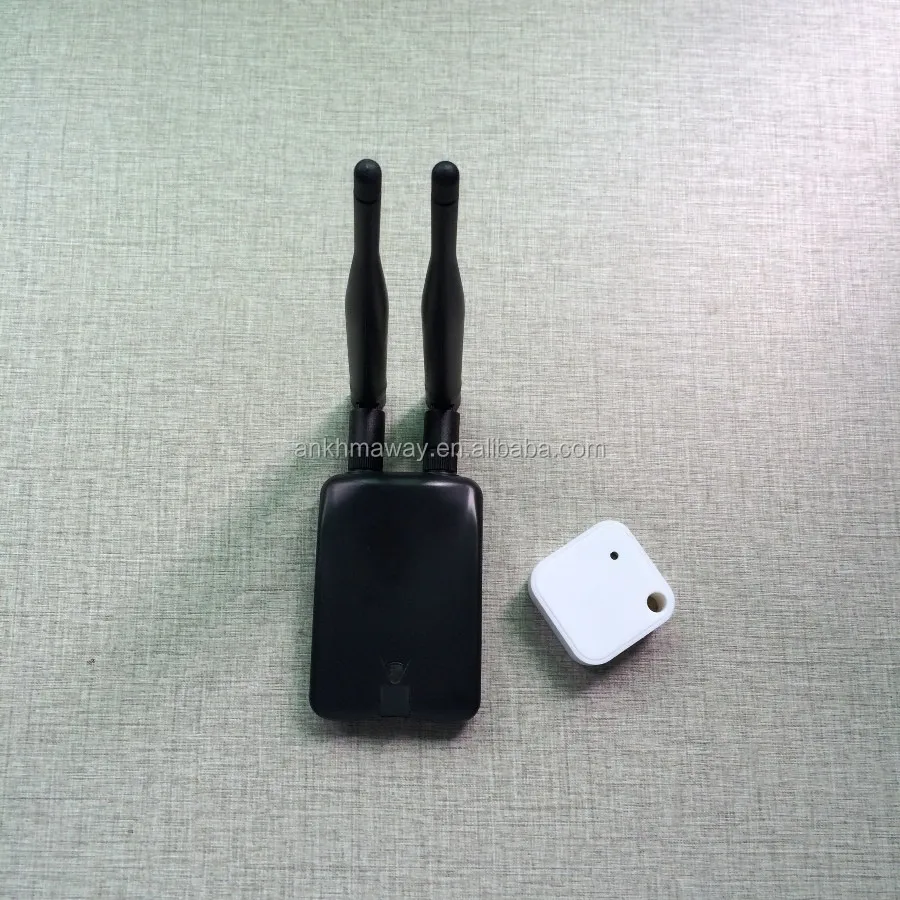

iB006N is a BLE to WiFi gateway and bridge.The gateway reads iBeacon, Eddystone data, or other data from sensors through bluetooth, and it communicates using WiFi through TCP/HTTPS sockets to upload the collected readings and/or receive instructions from a central cloud based server
■ Size: 18mm*58mm*85mm(not including antenna)
■ Input: 5V, 500mA, mini-USB ■ Low power consumption, 70mA typical working current ■ Reads multiple BLE devices in the same time ■ Support TCP/HTTP server
BLE ■ 130M range in open space WiFi ■ 2.4GHz frequency band ■ Connect to Cloud server or local server ■ 130M range in open space
■ iBeacon/Eddystone/tag receiver/Sensors for location tracking ■ BLE sensor reader for sensor network ■ Building automation ■ Health and wellness monitoring ■ Cycling, biking ■ Security ■ Location tracking ■ Access management ■ Advertisement ■ Industrial automation
Case customization For the bulk purchase consumer, we provide the case customization and even the hardware design just for your customized housing
Logo printing customization We can print your own logo on the case in any color (Gradient color will relatively cost more).
Firmware customization We provide the firmware customization.you can change the UUID, major, minor and other parameters.
Bluetooth range: 20-30m Battery type: CR2032 Working time: 12 months based on broadcasting rate 1second Size: 27*7.6mm Chipset: N51822 256KB.
Bluetooth range: 100m Battery type: CR2477 Working time: 58monthsbased on broadcasting rate 1second Size: 42.3mmx42.3mmx13.4mm Chipset: N51822 256KB
Bluetooth range: 40m Powered by: USB adapter Size: 19*15*6mm Chipset: N51822 256KB
Bluetooth range: 75m Battery type: CR2450 Working time: 30 months based on broadcasting rate 1second Size: 40*40*13.5mm Chipset: N51822 256KB
Bluetooth range: 50m Battery type: CR2016 Working time: 4.63 months based on broadcasting rate 1second Size: 40.3mm x 23.9mm x 2.6mm Chipset: N51822 256KB
Bluetooth range: 130m Powered by: USB adapter Size: 19*15*6mm Chipset: N51822 256KB
Features: iBeacon data, but Eddystone data is optional Chipset: N51822 256KB Bluetooth range: 20m in open air Battery type: Rechargeable battery Working time: 1 month based on broadcasting rate 1s every charge With Vibrator and LED Color: black, blue, pink, orange, red
