BLE Beacon with Accelerometer Temperature Sensor

FOB Reference Price:Get Latest Price
$10.00 - $20.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
iBeTag
Model Number:
iB003N-SHT
Battery:
CR2477
Battery life:
24 months based on broadcasting rate 1s'
Waterproof rate:
IP67
Range:
100M in open area
Demension:
42.3mm x42.3mm x13.4mm
Chipset:
Nordic nrf51822
Features:
Accelerator , Motor , 90dB Buzzer
System Requirements:
iPhone 4S and above, iPad 3 and above,The New iPod Touch
Color:
Black & White
Product Name:
bluetooth beacon and temperature
Supply Ability
Supply Ability:
10000 Parcel/Parcels per Week
Packaging & Delivery
Packaging Details
Carton Box
Port
Shenzhen
Video Description
iBeacon Feature

 BLE Beacon with Accelerometer Temperature Sensor

•Support iBeacon features.
•Support Eddsytone Beacon features.
•Support BLE4.0 protocol.
•Support to broadcast ibeacon, eddystone, sensors data simultaneously.
•Support Motion-Triggered broadcast.
•Motion Detection.
•Position Detection


•Get the acceleration value without connecting.
•Intelligent power management
•Support intelligent activation
•Support intelligent working mode switching
•With Acceleration Sensor
•Temperature, pressure, gyro, and other sensors optional
•Support OAD
•90dB buzzer
•Vibrator

iBeacon Parameters
Item
Test Data
Remarks
Chip
NRF51822
Nordic
Battery model
CR2477
Null
Operation Voltage
2.0-3.6V
DC
Operation Frequency
2400-2483.5MHz
Programmable
Frequency Error
+/- 20KHz
Null
Modulation
Q-QPSK
Null
Standby current
12uA
Null
Output Power
4 dBm - -40dBm
Programmable
Receiving Sensitivity
-93dBm
High gain mode
Transmission distance
100m
BER<0.1%, Open space
Antenna
50ohm
Onboard
State
Operation Current (uA)
Sleeping Mode
3.6
Connectable Mode
142
Non-Connectable Mode
22.5

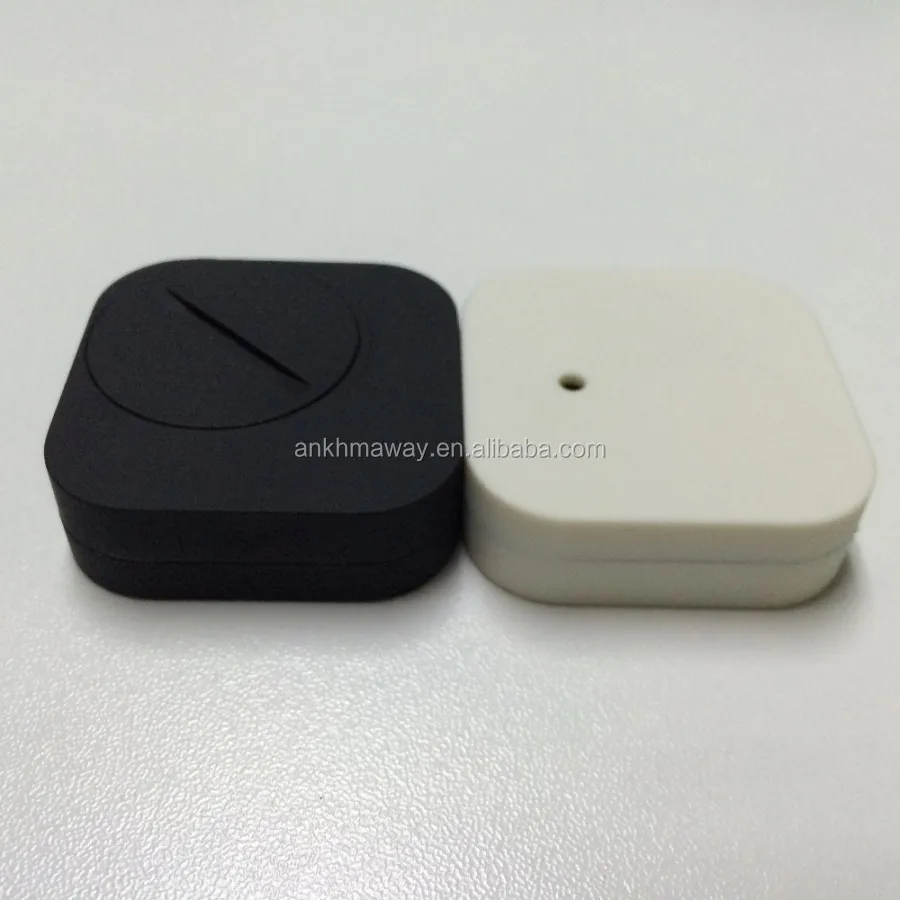

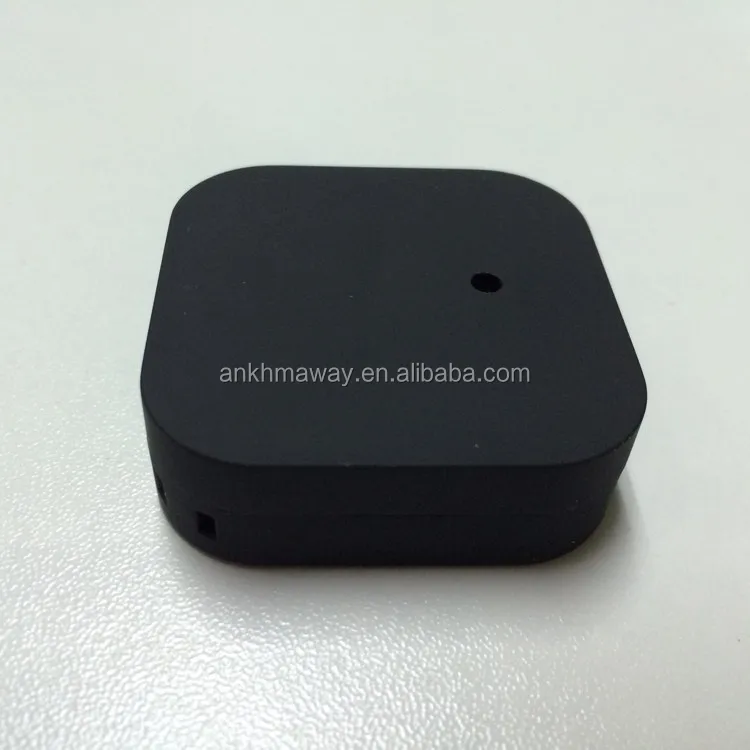

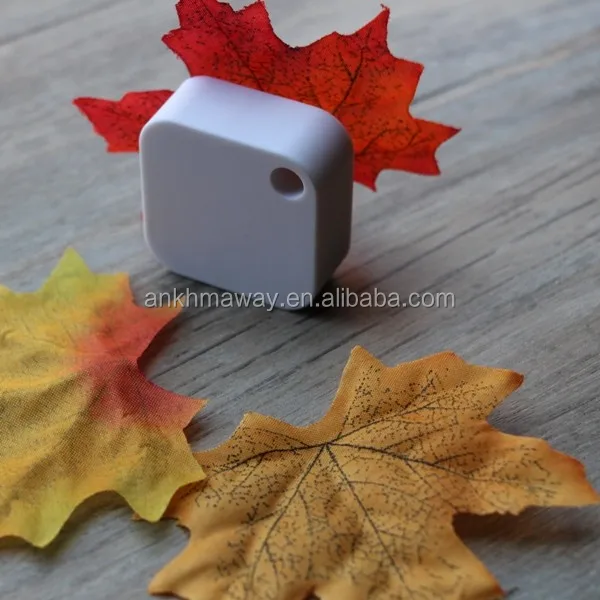

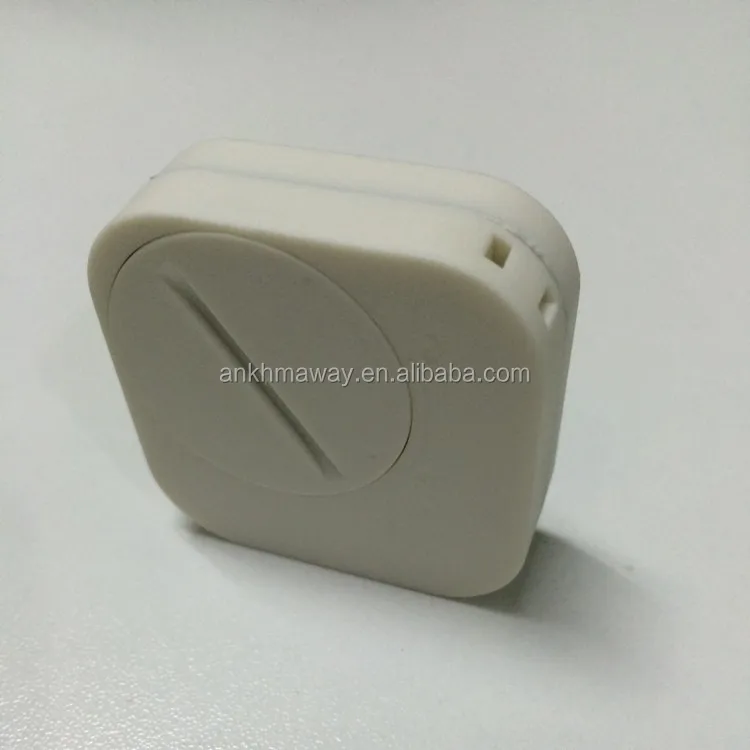

Detailed Images
Certifications
About Us
Our Service

Case customization
For the bulk purchase consumer, we provide the case customization and even the hardware design just for your customized housing

Logo printing customization
We can print your own logo on the case in any color (Gradient color will relatively cost more).

Firmware customization
We provide the firmware customization.you can change the UUID, major, minor and other parameters.

Other Models

iB006N

Ble range: 130m
Battery type: Rechargeable Battery
Size: 18*58*85mm
Chipset: N52832

iB004N PLUS

Ble range: 100m
Battery type: CR2477
Working time: 58 months based on broadcasting rate 1second
Size: 40*40*16.5mm
Chipset: N51822 256KB

iB001N

Ble range: 20-30m
Battery type: CR2032
Working time: 12 months based on broadcasting rate 1second
Size: 27*7.6mm
Chipset: N51822 256KB

iB001W

Chipset: N51822 256KB
Ble range: 20m in open air
Battery type: Rechargeable battery
Working time: 1 month based on broadcasting rate 1s every charge
With Vibrator and LED
Color: black, blue, pink, orange, red


iB001M

Ble range: 70m
Battery type: CR2016
Working time: 10 months based on broadcasting rate 1second
Size: 40.3mm x 23.9mm x 2.6mm
Chipset: N51822 256KB

iB005N

Ble range: 40m
Powered by: USB adapter
Size: 19*15*6mm
Chipset: N51822 256KB

iB003N

Ble range: 100m
Battery type: CR2477
Working time: 58monthsbased on broadcasting rate 1second
Size: 42.3mmx42.3mmx13.4mm
Chipset: N51822 256KB

iB003N-SHT

Chipset: Nordic 51822
Battery type: CR2477 battery
Ble range: 100 meters in open air
Battery life: 24 months/broadcasting rate 1 second
Sensor: acceleration sensor, humidity and temperature sensor

iB004N Plus-PIR

PIR range: 7 meters
with 140° conical radiation
Beacon range: 100 meters in open air
Complys to Bluetooth 4.0

Mode: Trigger broadcasting mode and Service notifying mode
