Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: iBeTag
  • Model Number: AKMW-iB006N
  • Product Name: iBeacon
  • Color: Black
  • Chipset: nRF52832
  • Bluetooth range: 130M range in open space
  • Wifi: 2.4GHz frequency band
  • Size: 58mm*90mm*18.5mm (not including antenna )
  • Input: 5V, 500mA, mini-USB
  • Wireless: IEEE 802.11b/g/n
  • Name: bluetooth beacon
  • Product name: ble gateway

Packaging & Delivery

Packaging Details Carton Packing
Delivery Time Shipped in 3 days after payment
iBeacon Feature

Factory derectly ble gateway long range bluetooth beacon with wifi beacon

iB006N is a BLE to WiFi gateway and bridge.The gateway reads iBeacon, Eddystone data, or other data from sensors through bluetooth, and it communicates using WiFi through TCP/HTTP sockets to upload the collected readings and/or receive instructions from a central cloud based server


Application

■ iBeacon/Eddystone/tag receiver/Sensors for location tracking
■ BLE sensor reader for sensor network
■ Building automation
■ Health and wellness monitoring
■ Cycling, biking
■ Security
■ Location tracking
■ Access management
■ Advertisement
■ Industrial automation

iBeacon Parameters
WiFi RF Specification
Wireless
IEEE 802.11b/g/n
Network modes
Wi-Fi Direct, soft-AP
Frequency band
2.400 – 2.484 GHz
Operation Frequency
2400-2483.5MHz
Programmable
Channel Bandwidth
20MHz
Modulation
OFDM, DSSS (Direct Sequence Spread Spectrum), DBPSK, DQPSK, CCK , 16QAM, 64QAM
Maximum receive input level
- 10dBm (with PER < 8%@11 Mbps)
- 20dBm (with PER < 10%@54 Mbps)
- 20dBm (with PER < 10%@MCS7)
Minimum receive input level
- 70dBm (typ. with PER < 10%@54 Mbps)
- 70dBm (typ. with PER < 10%@MCS7)
Transmit Power
17dBm (typical)@802.11b
13dBm (typical)@802.11g
11dBm (typical)@802.11n
Range
130M in open area
Security
WPA/WPA2
BLE RF Specification
Receiver Sensibility
-96 dBm

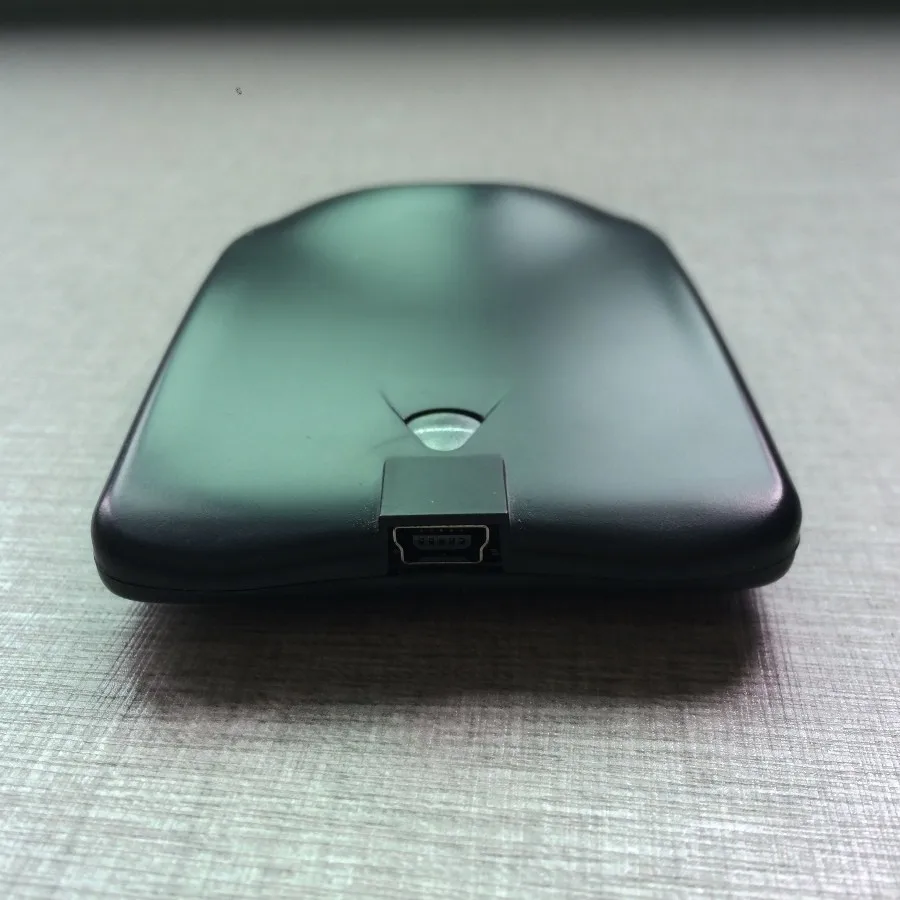

Detailed Images
Certifications
Our Service

Case customization
For the bulk purchase consumer, we provide the case customization and even the hardware design just for your customized housing

Logo printing customization
We can print your own logo on the case in any color (Gradient color will relatively cost more).

Firmware customization
We provide the firmware customization.you can change the UUID, major, minor and other parameters.

Other Models

AKMW-iB001N

Bluetooth range: 20-30m
Battery type: CR2032
Working time: 12 months based on broadcasting rate 1second
Size: 27*7.6mm
Chipset: N51822 256KB.

AKMW-iB003N

Bluetooth range: 100m
Battery type: CR2477
Working time: 58monthsbased on broadcasting rate 1second
Size: 42.3mmx42.3mmx13.4mm
Chipset: N51822 256KB

AKMW-iB004N PLUS

Bluetooth range: 100m
Battery type: CR2477
Working time: 58 months based on broadcasting rate 1second
Size: 40*40*16.5mm
Chipset: N51822 256KB

AKMW-iB001W

Features: iBeacon data, but Eddystone data is optional
Chipset: N51822 256KB
Bluetooth range: 20m in open air
Battery type: Rechargeable battery
Working time: 1 month based on broadcasting rate 1s every charge
With Vibrator and LED
Color: black, blue, pink, orange, red

AKMW-iB001M

Bluetooth range: 70m
Battery type: CR2016
Working time: 10 months based on broadcasting rate 1second
Size: 40.3mm x 23.9mm x 2.6mm
Chipset: N51822 256KB

AKMW-iB005N-SMA

Bluetooth range: 130m
Powered by: USB adapter
Size: 19*15*6mm
Chipset: N51822 256KB

AKMW-iB005N

Bluetooth range: 40m
Powered by: USB adapter
Size: 19*15*6mm
Chipset: N51822 256KB
