iOS7.0 above with tool APP & Andriod BLE 4.0 above with SDK
58 months based on broadcasting rate 1s'
Black & White
Packaging & Delivery
Shipped in 3 days after payment

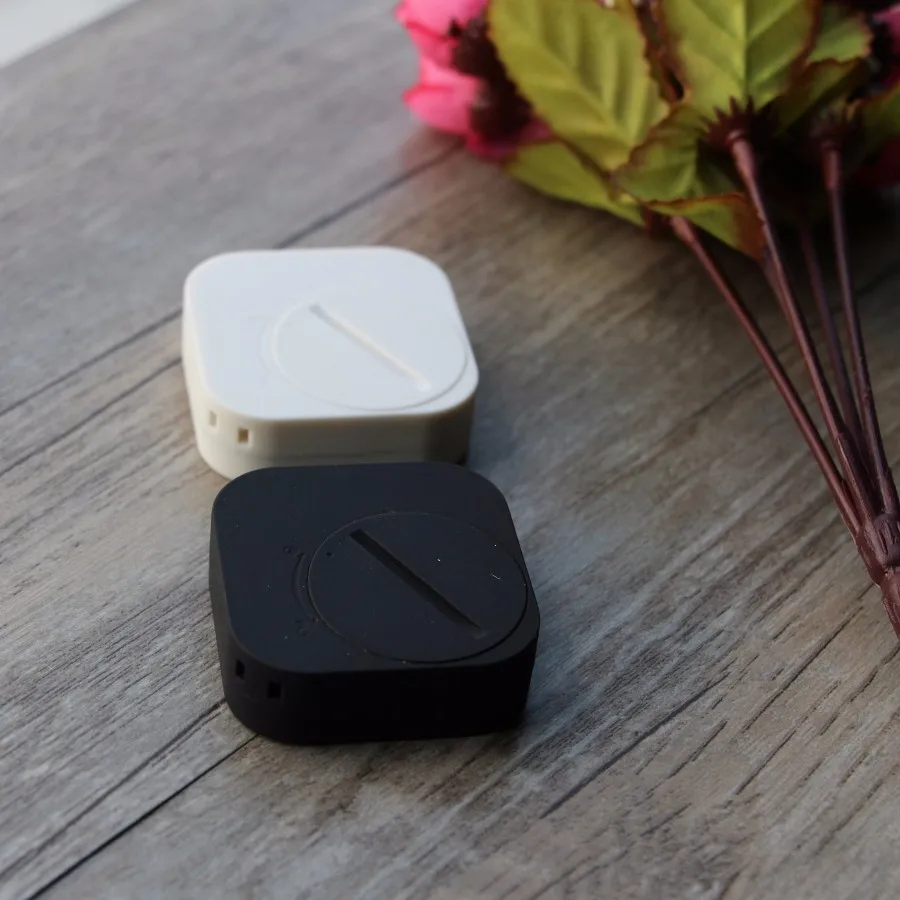

Proximity Sensor Bluetooth Beacon Waterproof iBeacon Tag Eddystone
iBeaconcan work as an independent system, and lithium batteries supply power for these models. It has 3 different working modes, sleep mode, connectable mode and non-connectable mode. It makes the best use of the battery power.
URI Beacon is the acronym of Uniform Resource Identifier Beacon. The Uniform Resource Identifier Beacon (UriBeacon ) defines Bluetooth 4.0 broadcast Data that contains Web Uris. UriBeacon provides a way for Bluetooth Low Energy devices to discover nearby Uris, for example, provides a way for a user to discover a short Uri and then download it on their smart phone.
AKMW-iB003N is Fully-functional indoor locating Beacon
This module of Beacon is built-in motion sensor, acceleration sensor, vibrator and 90 dB buzzer. These components ensure the motion detecting and locating easily and accurately. This special module is equipped with micro Beacon OS 4.0, supporting both iBeacon and URI Beacon and formal BLE 4.0 protocol. Meanwhile, this system can simultaneously broadcast three different kinds of information, which means it finishes 3 things at the same time.
For developers, we provide the Android and IOS SDK,and all the interface developed completely by us, all of the parameters can be reconfigured, including Proximity UUID, Major, Minor and Power. In order to meet different customers’ needs, interval rate can also be configured, which ranges from 100 ms to 10 s. Besides, hardware TX power can be configured, and configurable range is 4 dBm to -40 dBm. Low cost customizing housing would be provided to potential customers.
100m in open air
58 monthsbased on broadcasting rate 1s'
1.8v - 3.6v
-20 to +4 dBm in 4 dB steps
-30 dBm Whisper mode
3.6μA standby average, 21μA normal average
Side Pins for debugging
VCC, GND, SWDCLK, SWDIO
Coin battery, 3.0Vdc, 1pc
4 dBm - -40dBm
High gain mode
BER<0.1%, Open space
Operation state and power consumption
Operation Current (uA)
For the bulk purchase consumer, we provide the case customization and even the hardware design just for your customized housing!
Logo printing customization
We can print your own logo on the case in any color (Gradient color will relatively cost more).
We provide the firmware customization.you can change the UUID, major, minor and other parameters.
