Waterproof Ultra Thin BLE Chip Module Radio Beacon With Replaceable Battery Low Energy iBeacon

FOB Reference Price:Get Latest Price
US $13-20 / Pieces | 1 Piece/Pieces (Min. Order)
Contact Supplier Start Order
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
iBeTag
Model Number:
iB002M
Product Name:
iBeacon
Battery:
CR2016
Working time:
6months based on broadcasting rate 1s'
Distance::
50m in open air
Dimensions:
49mm x 28mm x 3.8mm
Chipset:
Nordic nrf51822
Application:
iOS7.0 above with tool APP & Andriod BLE 4.0 above with SDK
Certificates:
CE
Function:
Broadcasting advertisement or info.
Color:
Black
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Carton Packing
Port
Shenzhen
Lead Time :
Shipped in 3 days after payment
iBeacon Feature

Waterproof Ultra Thin BLE Chip Module Radio Beacon With Replaceable Battery Low Energy iBeacon

Support iBeacon and Eddystone

Built-in Beacon firmware, compatible with BLE.
Built-in a coin battery (CR2016 or CR2032 or CR2450 or CR2477).
All the parameters can be configured (UUID, Major, Minor, Measured Power, TX Power, etc.)
We will provide you with a tool APP and API document to configure beacon data, and IOS/Android SDK and Android Source Code to develop your APP.
Encrypted parameter, a password is needed when access to configure.
Support the background management of battery.

iBeacon Parameters
Item
Test Data
Remarks
Chip
NRF51822
Nordic
Battery model
CR2016
Null
Operation Voltage
2.0-3.6V
DC
Operation Frequency
2400-2483.5MHz
Programmable
Frequency Error
+/- 20KHz
Null
Modulation
Q-QPSK
Null
Standby current
12uA
Null
Output Power
4 dBm - -40dBm
Programmable
Receiving Sensitivity
-93dBm
High gain mode
Transmission distance
50m
BER<0.1%, Open space
Antenna
50ohm
Onboard
State
Operation Current (uA)
Sleeping Mode
3.6
Connectable Mode
142
Non-Connectable Mode
22.5

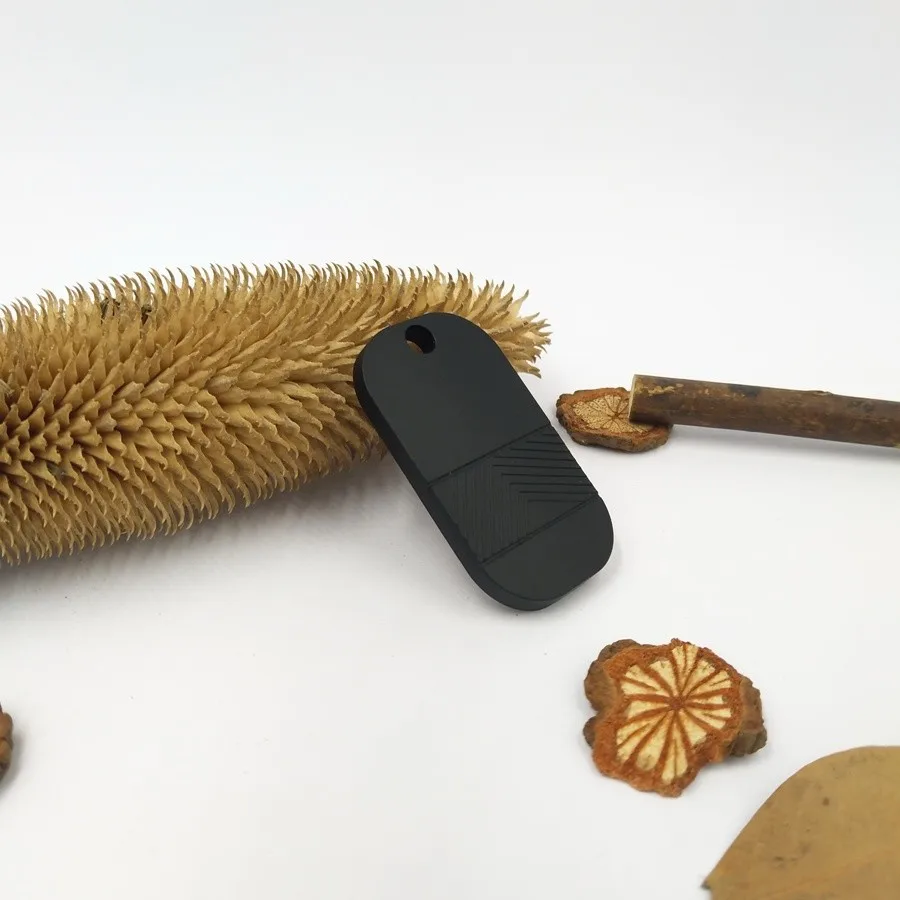

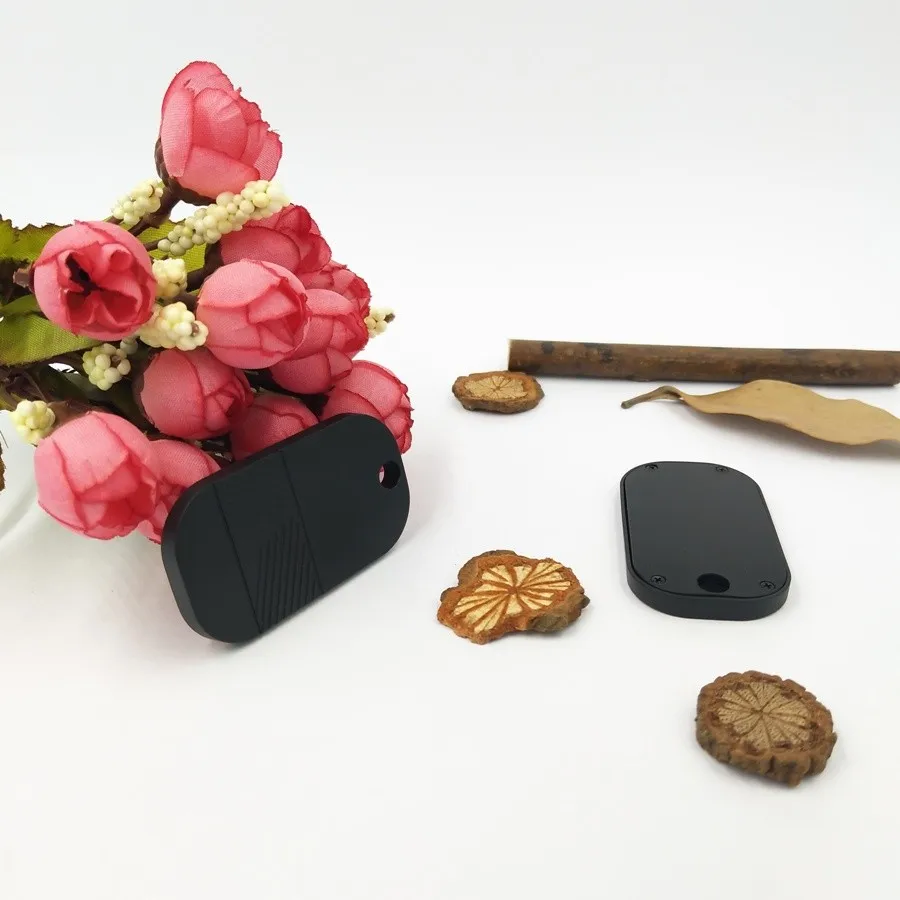

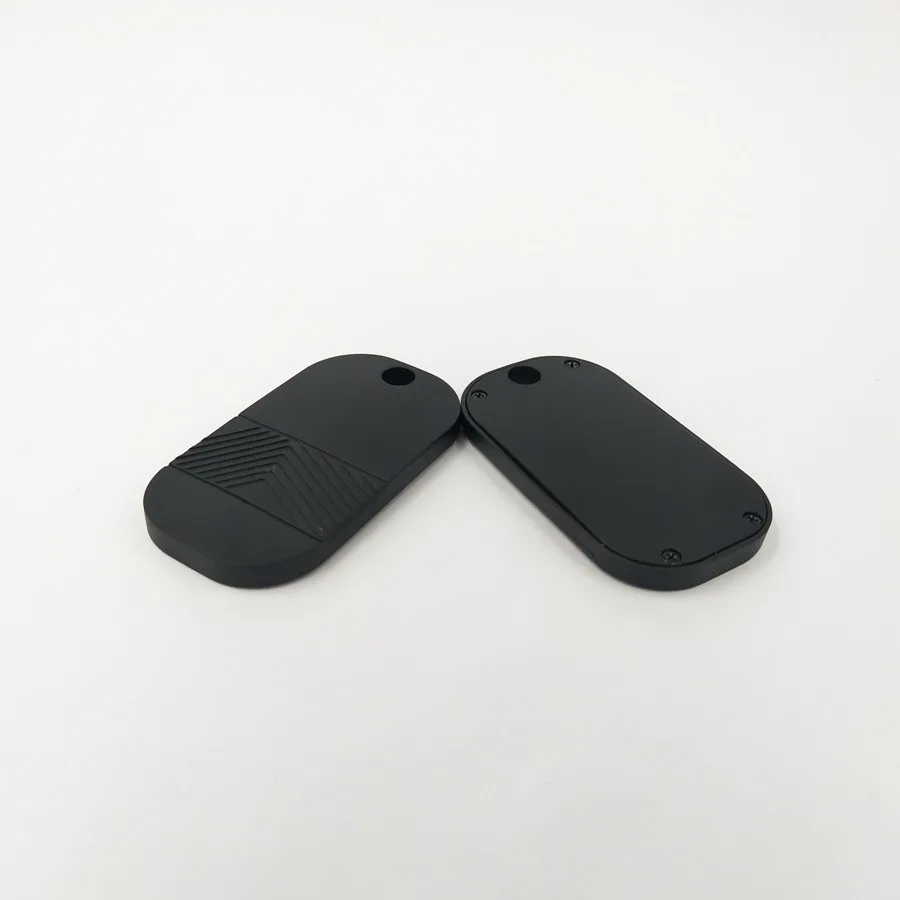

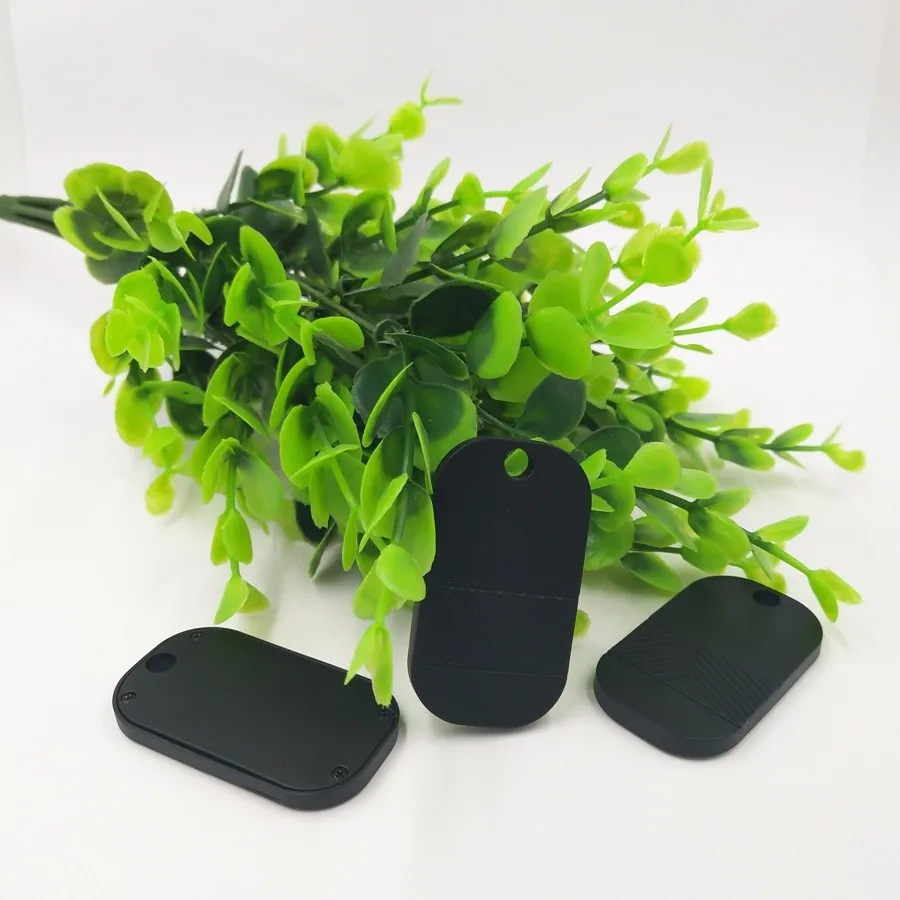

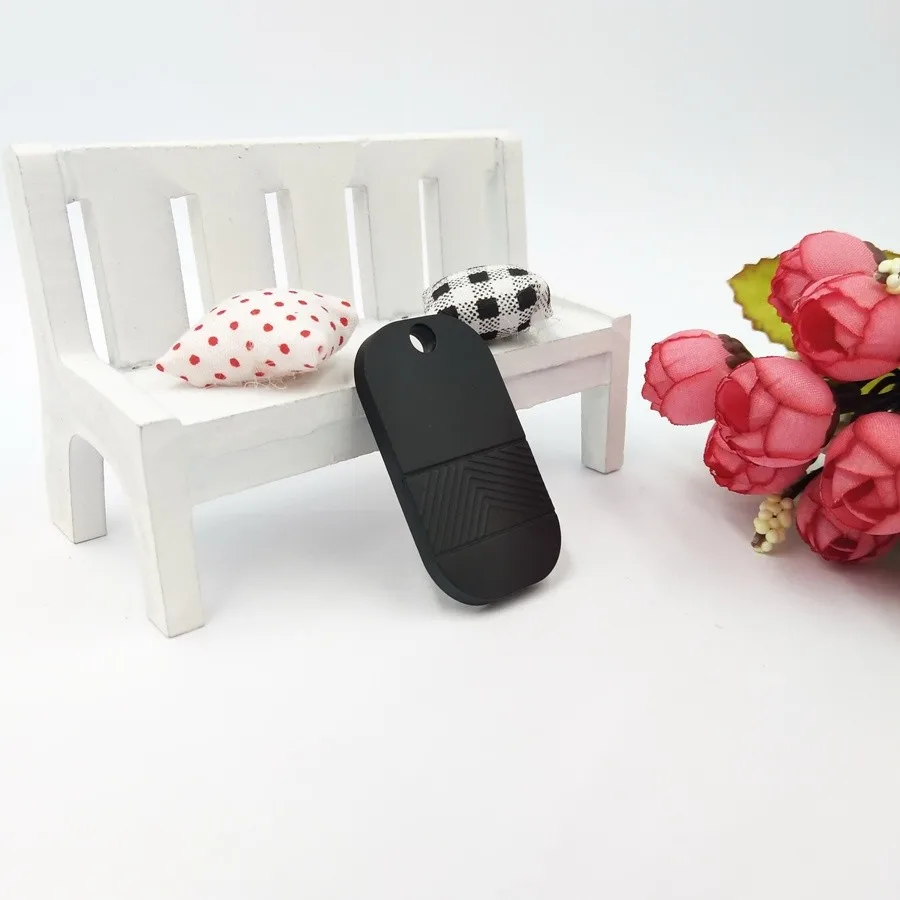

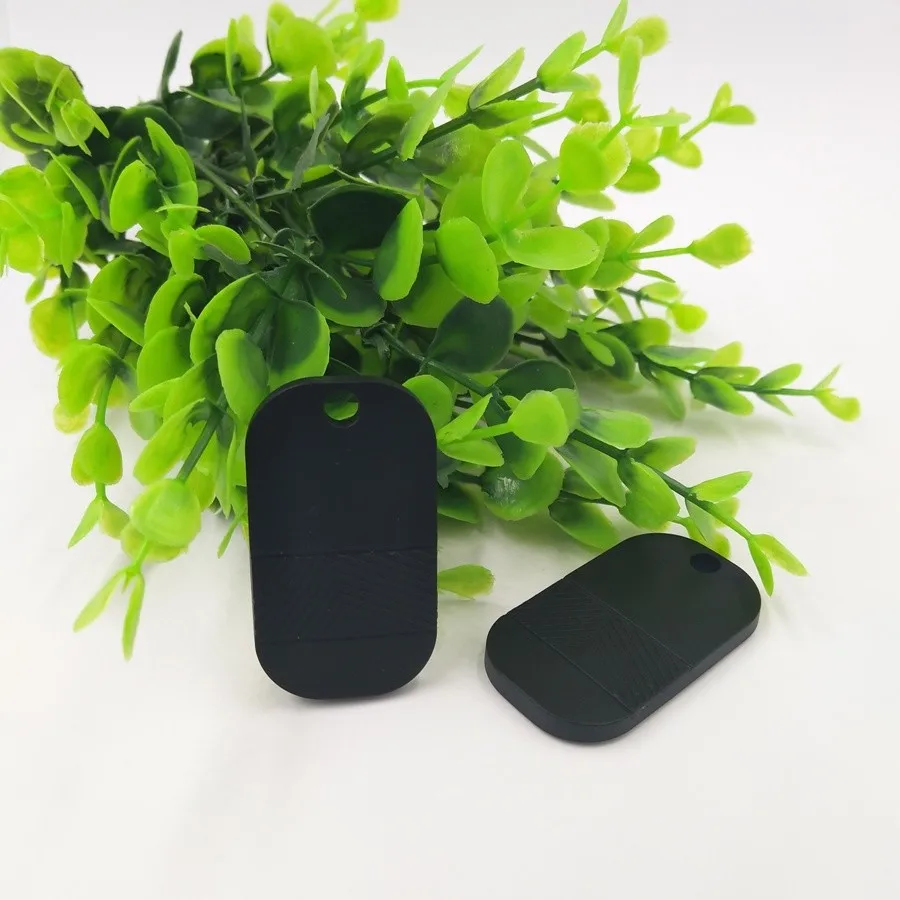

Detailed Images

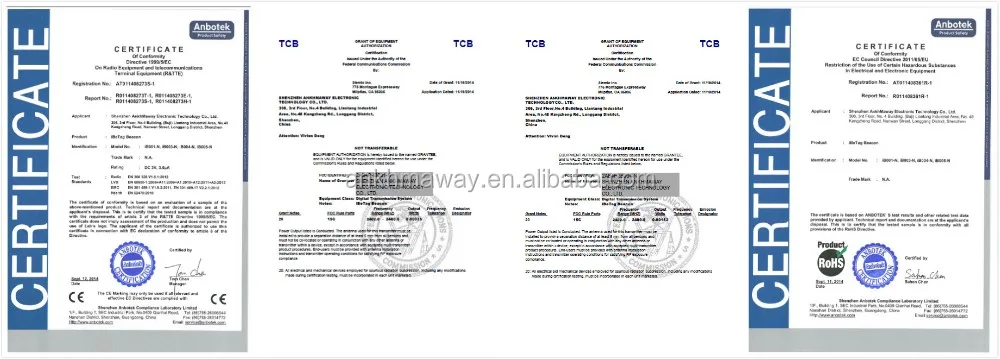

Certifications
Our Service

Case customization
For the bulk purchase consumer, we provide the case customization and even the hardware design just for your customized housing

Logo printing customization
We can print your own logo on the case in any color (Gradient color will relatively cost more).

Firmware customization
We provide the firmware customization.you can change the UUID, major, minor and other parameters.

Other Models

iB001N

Bluetooth range: 20-30m
Battery type: CR2032
Working time: 12 months based on broadcasting rate 1second
Size: 27*7.6mm
Chipset: N51822 256KB.

iB003N

Bluetooth range: 100m
Battery type: CR2477
Working time: 58monthsbased on broadcasting rate 1second
Size: 42.3mmx42.3mmx13.4mm
Chipset: N51822 256KB

iB005N

Bluetooth range: 40m
Powered by: USB adapter
Size: 19*15*6mm
Chipset: N51822 256KB

iB004N PLUS

Bluetooth range: 100m
Battery type: CR2477
Working time: 58 months based on broadcasting rate 1second
Size: 40*40*16.5mm
Chipset: N51822 256KB

iB004N

Bluetooth range: 75m
Battery type: CR2450
Working time: 30months based on broadcasting rate 1second
Size: 40*40*13.5mm
Chipset: N51822 256KB

iB005N-SMA

Bluetooth range: 130m
Powered by: USB adapter
Size: 19*15*6mm
Chipset: N51822 256KB

iB001W

Features: iBeacon data, but Eddystone data is optional
Chipset: N51822 256KB
Bluetooth range: 20m in open air
Battery type: Rechargeable battery
Working time: 1 month based on broadcasting rate 1s every charge
With Vibrator and LED
Color: black, blue, pink, orange, red
