Low Energy Beacon Waterproof iBeacon Long Range Beacon

FOB Reference Price:Get Latest Price
US $6.5-13.5 / Piece | 100 Piece/Pieces (Min. Order)
Supply Ability:
10000 Piece/Pieces per Week
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
iBeTag
Model Number:
iB004N Plus
Product Name:
iBeacon
Battery:
CR2477
Chipset:
Nordic nrf51822
Distance:
100m in open air
Application:
iOS7.0 above with tool APP & Andriod BLE 4.0 above with SDK
PCB size:
34*34*7.5mm
Housing size:
40*40*13.5mm
Certificates:
CE/FCC/ROHS/MFI
Working time:
58 months based on broadcasting rate 1s'
Weight:
40G
Packaging & Delivery
Packaging Details
Industrial Packing or Customized packing with design
Delivery Time
Shipped in 7 days after payment
Video Description

Low Energy Beacon Waterproof iBeacon Long Range Beacon

Interested ? Send us inquiry Now! ♥





















iBeacon Description



iBeacon can work as an independent system, and lithium batteries supply power for these models. It has 3 different working modes, sleep mode, connectable mode and non-connectable mode. It makes the best use of the battery power.

Eddystone is an open source technology put forward by Google in 2015, and there are three data types in Eddystone, Eddystone-UID, Eddystone-URL, Eddystone-TLM, Eddystone-EID.



Support: iBeacon, Eddystone or Simutaneously.



For developers, Android source code and IOS SDK will be provided, and all the interface developed completely by us, all of the parameters can be reconfigured, including Proximity UUID, Major, Minor and Power, Eddystone UID and URL. In order to meet different customers’ needs, interval rate can also be configured, which ranges from 100 ms to 10 s. Besides, hardware TX power can be configured, and configurable range is 4 dBm to -40 dBm

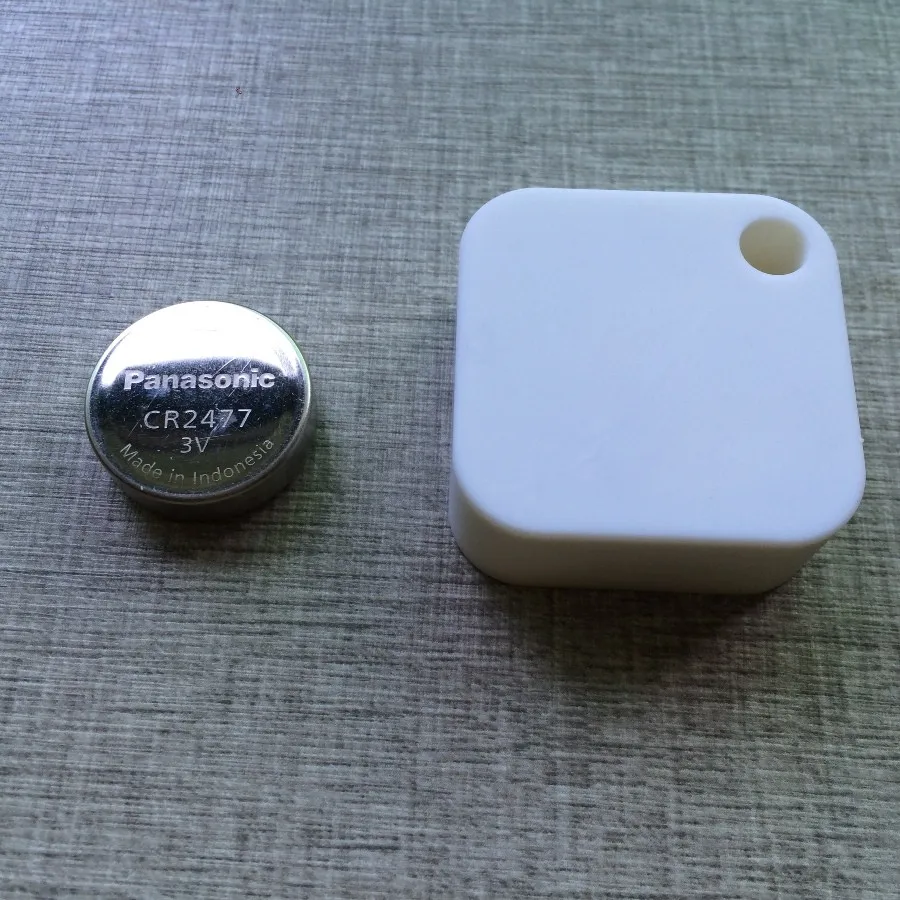

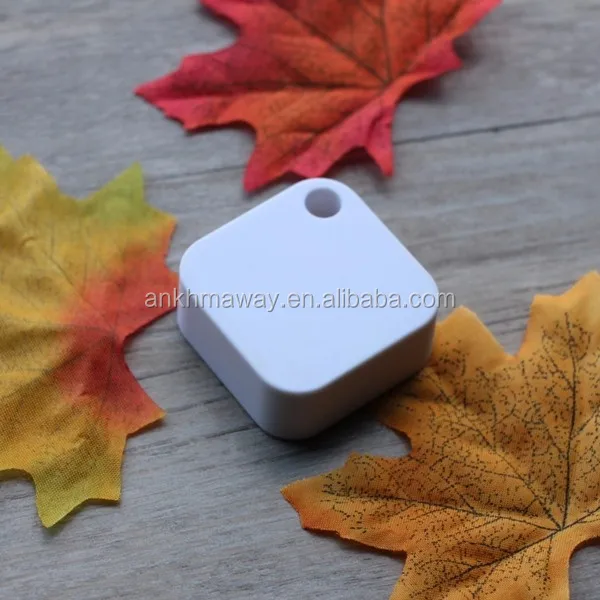

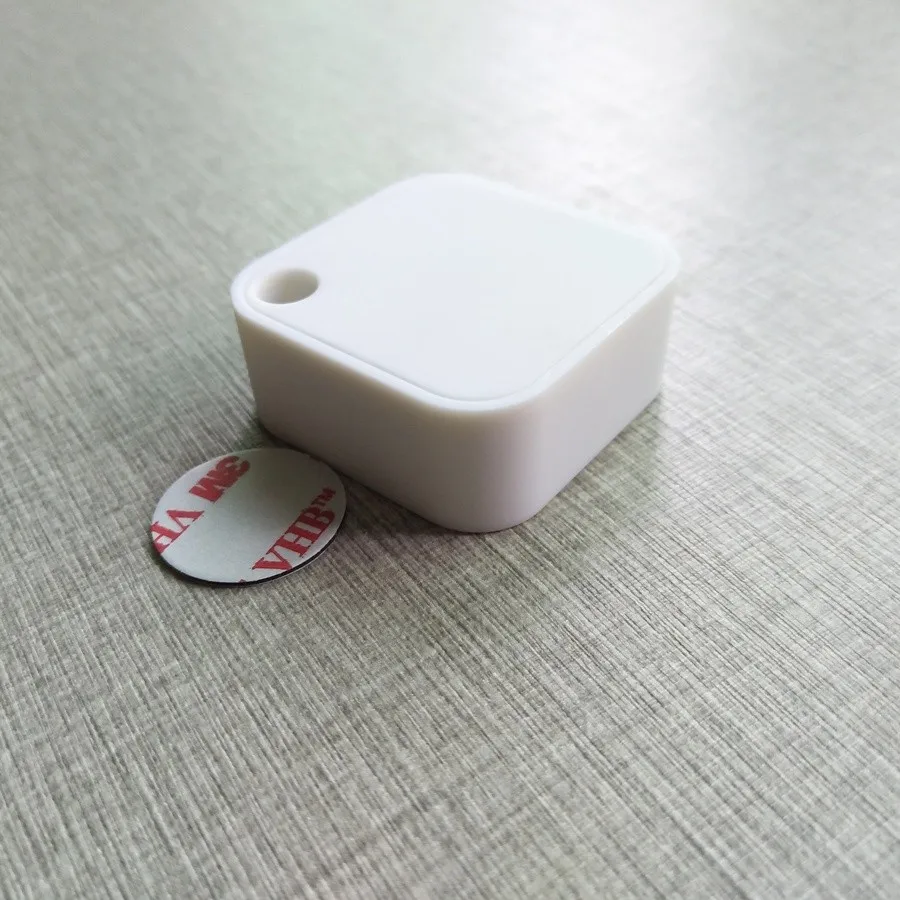

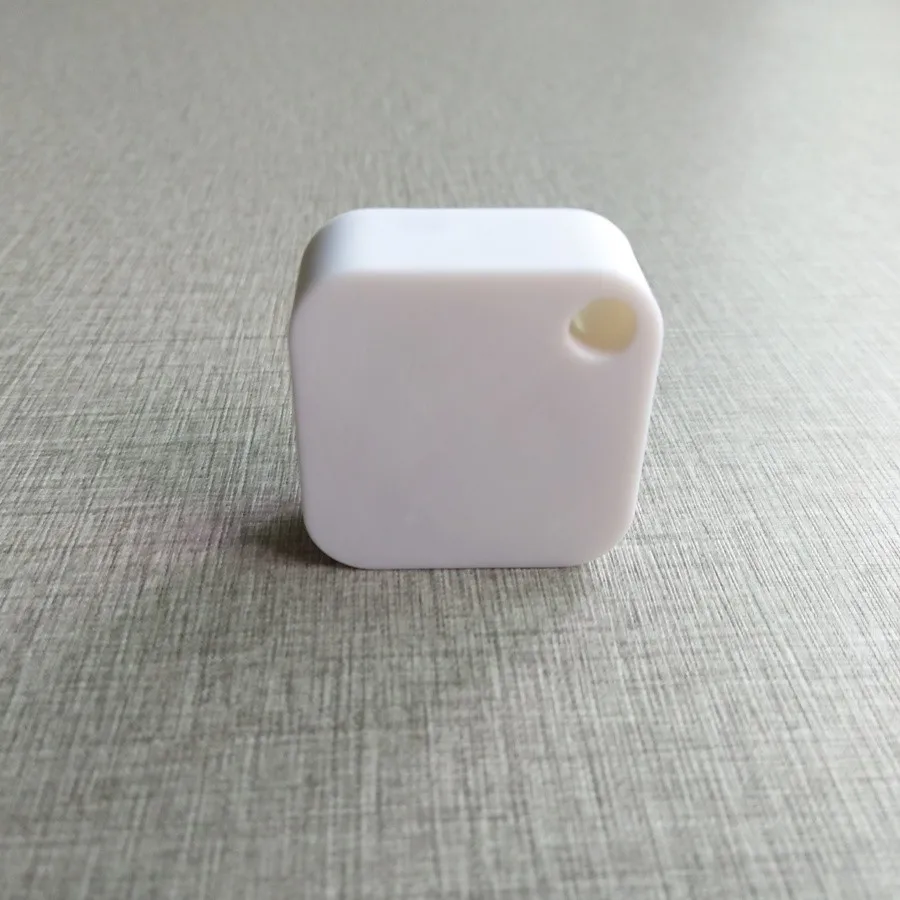

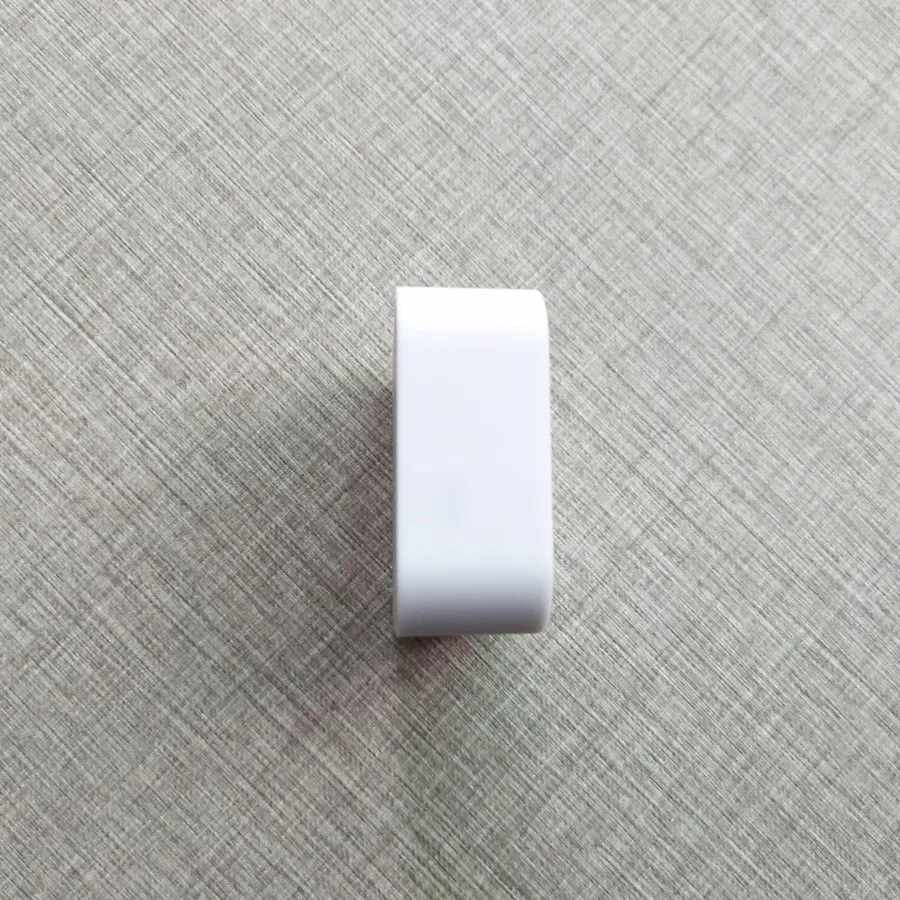

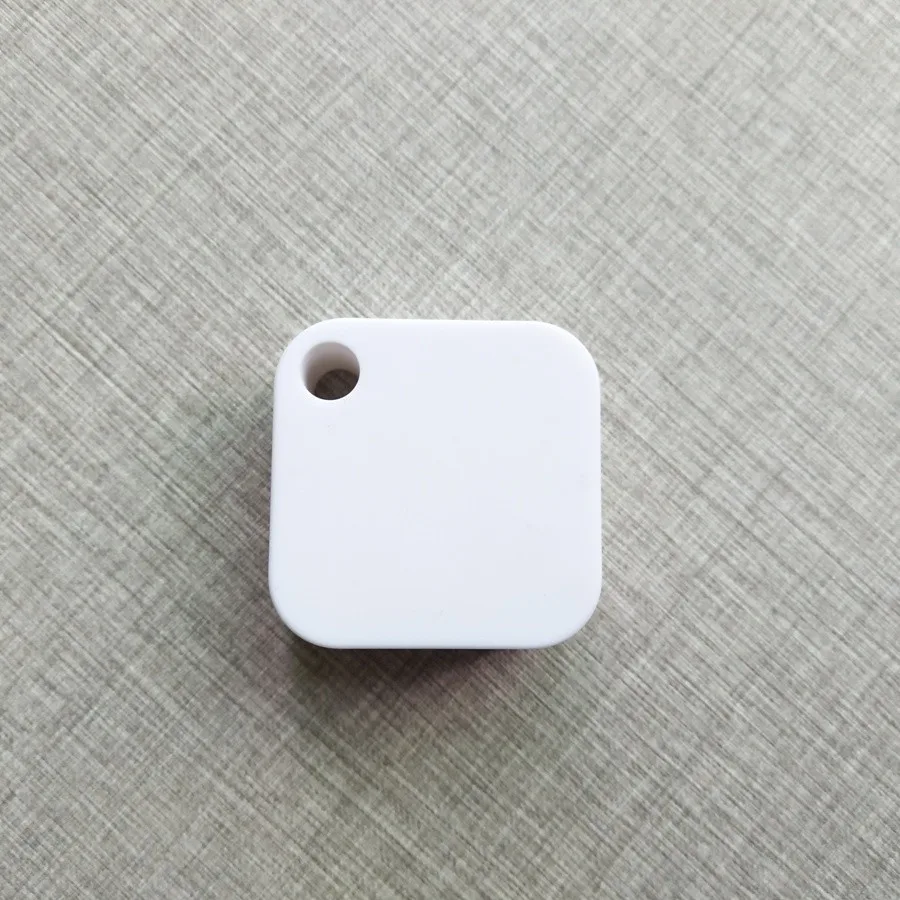

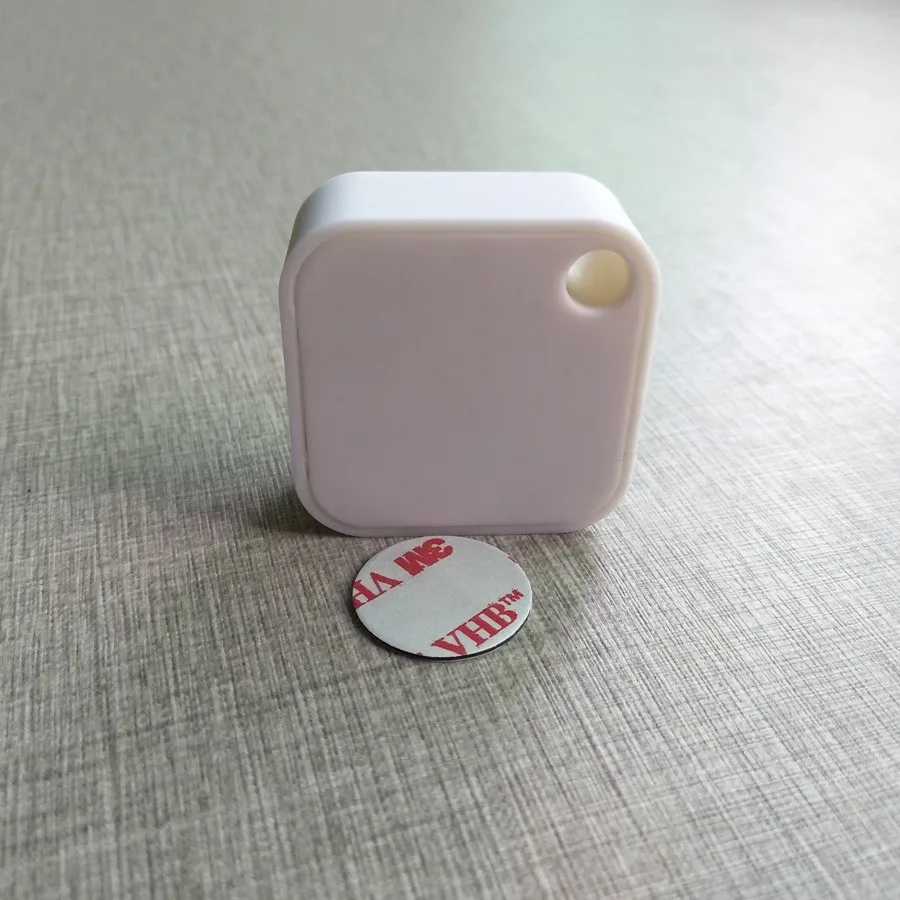

iBeacon Photos













iBeacon Parameters

Item

Test Data

Remarks

Chip

NRF51822

Nordic

Battery model

CR2477

Coin battery, 3.0Vdc, 1pc

Operation Voltage

2.0-3.6V

DC

Operation Frequency

2400-2483.5MHz

Programmable

Frequency Error

+/- 20KHz

Null

Modulation

Q-QPSK

Null

Standby current

12uA

Null

Output Power

4 dBm - -40dBm

Programmable

Receiving Sensitivity

-93dBm

High gain mode

Transmission distance

100meters

BER<0.1%, Open space

Antenna

50ohm

Onboard



Operation state and power consumption

State

Operation Current (uA)

Sleeping Mode

3.6

Connectable Mode

142

Non-Connectable Mode

22.5







Customization



We can provide various kinds of customization service, such as Tooling, Sensors, Logo Printing, Housing Design, Firmware Development, Packaging Box Design etc.

If you have any reuqest for customization, pls feel free to contact us !!







Application





















































Certifications










About US

AnkhMaway offers complete indoor Bluetooth BLE solutions for indoor navigation with beacon tag

hardware and open Interface to support any indoor navigation deployment.

We offer stand-alone tags and services or complete professional services, engineering,

and custom beacon tag designs. You can do everything you want without any limit of us.

For the development documents matters, please contact us.
