Bluetooth Alarm PIR Motion Sensor BLE iBeacon Eddystone Beacon

FOB Reference Price:Get Latest Price
US $35-37 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
iBeTag
Model Number:
iB004N Plus-PIR
Product Name:
Bluetooth Beacon
Working time in iBeacon model:
58 months based on broadcasting rate 1s'
Detecting distance:
About 2m
Bluetooth range:
100m in open air
Housing size:
40*40*17mm
Battery:
CR2477
Certificates:
CE/FCC/ROHS/MFI
Application:
iOS7.0 above with tool APP & Andriod BLE 4.0 above with SDK
Weight:
40G
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Carton Packing
Port
Shenzhen
Lead Time :
Shipped in 7 days after payment
iBeacon Feature

Bluetooth Alarm PIR Motion Sensor BLE iBeacon Eddystone Beacon

Support iBeacon and Eddystone.

-Built-in Beacon firmware, compatible with BLE.

-Built-in a coin battery.
-All the parameters can be configured (UUID, Major, Minor, Measured Power, TX Power, etc.)
-We will provide you with a tool APP and API document to configure beacon data, and IOS/Android SDK and Android Source Code to develop your APP.
-Support the background management of battery.


-Intelligent PIR detection and Microprocessor Combined to eliminate false alarms.

-Built with tamper-proof and self-test supervision.
-Downward view (look-down) detection to eliminate blind zone.
-Intelligent circuit with temperature compensation, reliable operation at high temperature



The PIR motion detector utilizes ultra-low power consumption design to make long battery lifetime, also integrated with RF immunity, temperature protection and noise reduction so on technologies against false alarm technology, has high endurable with local temperature changing caused by curtain or sun light etc.

Specification
Item
Test Data
Remarks
Chip
NRF51822
Nordic
Battery model
CR2477
Null
Temperature Range
-20 to 60℃
Null
Power Supply
3V
DC
Operation Frequency
2400-2483.5MHz
Programmable
Wireless Frequency
2.4GHz
BLE
Modulation
Q-QPSK
Null
Standby current
2uA
Null
Output Power
4 dBm - -40dBm
Programmable
Receiving Sensitivity
-93dBm
High gain mode
Transmission distance
100m
BER<0.1%, Open space
Detecting distance
About 2m
Null
Antenna
50ohm
Onboard
Remote transmission option
Remote transmission to server with iB006N
Null
State
Operation Current (uA)
Sleeping Mode
3.6
Connectable Mode
142
Non-Connectable Mode
22.5
Our Service

Case customization
For the bulk quantity, we provide the case customization and even the eletronic design for your customized housing only.

Logo printing customization
We can print your own logo on the case in any color .

Firmware customization
We provide the firmware customization according to your requirements.

Other Models

iB001N

Bluetooth range: 20-30m
Battery type: CR2032
Working time: 12 months based on broadcasting rate 1second
Size: 27*7.6mm
Chipset: N51822 256KB.

iB003N

Bluetooth range: 100m
Battery type: CR2477
Working time: 58monthsbased on broadcasting rate 1second
Size: 42.3mmx42.3mmx13.4mm
Chipset: N51822 256KB

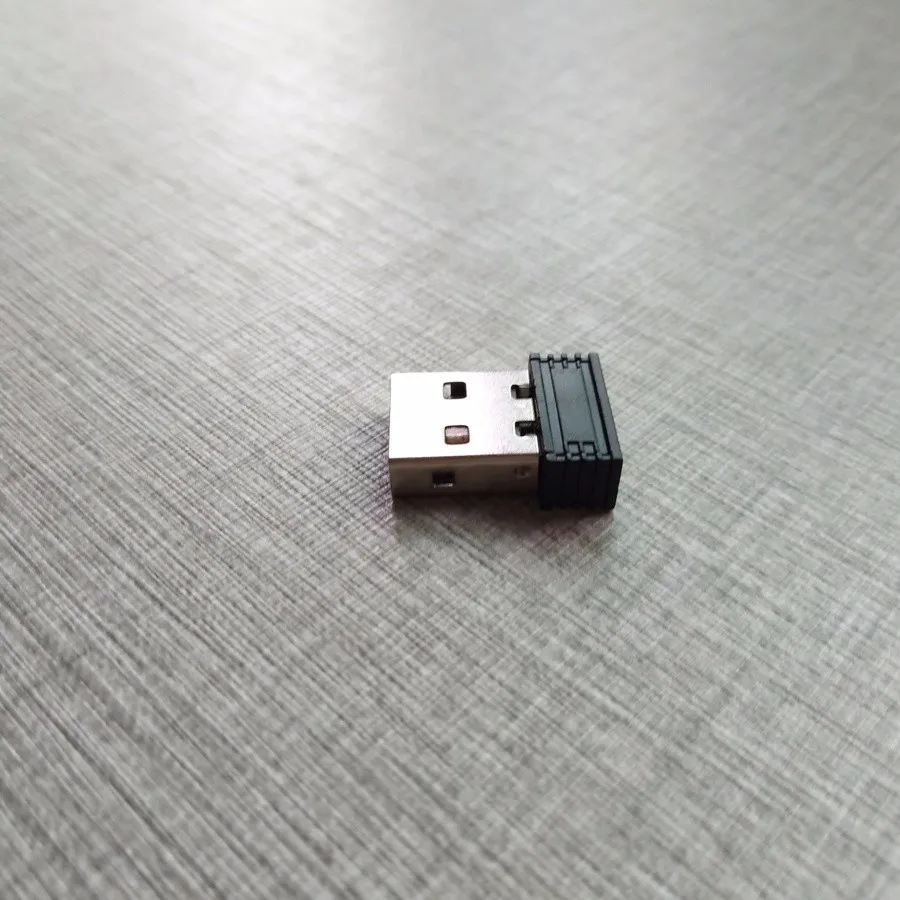

iB005N

Bluetooth range: 40m
Powered by: USB adapter
Size: 19*15*6mm
Chipset: N51822 256KB

iB004N

Bluetooth range: 75m
Battery type: CR2450
Working time: 30 months based on broadcasting rate 1second
Size: 40*40*13.5mm
Chipset: N51822 256KB

iB006N

AKMW-iB006N
Bluetooth range: 130m
Battery type: Rechargeable Battery
Size: 18*58*85mm
Chipset: N52832

iB001M

Bluetooth range: 70m
Battery type: CR2016
Working time: 10 months based on broadcasting rate 1second
Size: 40.3mm x 23.9mm x 2.6mm
Chipset: N51822 256KB

iB005N-SMA

Bluetooth range: 130m
Powered by: USB adapter
Size: 19*15*6mm
Chipset: N51822 256KB

iB001W

Features: iBeacon data, but Eddystone data is optional
Chipset: N51822 256KB
Bluetooth range: 20m in open air
Battery type: Rechargeable battery
Working time: 1 month based on broadcasting rate 1s every charge
With Vibrator and LED
Color: black, blue, pink, orange, red
