HTTP Server Support Ble Wifi gateway 130m long range ble beacon

FOB Reference Price:Get Latest Price
$32.50 - $38.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 50 51 - 100 101 - 1000 >1000
Est. Time(days) 15 30 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
iBeTag
Model Number:
iB006N
Product Name:
HTTP Server Support Ble Wifi gateway 130m long range ble beacon
Color:
Black
Chipset:
nRF52832
Ble range:
130M range in open space
Wifi:
2.4GHz frequency band
Size:
58mm*90mm*18.5mm (not including antenna )
Input:
5V, 500mA, mini-USB
Wireless:
IEEE 802.11b/g/n
Name:
ble beacon
Product name:
ble gateway
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week HTTP Server Support Ble Wifi gateway 130m long range ble beacon
Packaging & Delivery
Packaging Details
Industrial Packing or Customized Packing with Customer's Design
HTTP Server Support Ble Wifi gateway 130m long range ble beacon
Port
Shenzhen port
Lead Time :
Quantity(Pieces) 1 - 50 51 - 100 101 - 1000 >1000
Est. Time(days) 15 30 60 To be negotiated
Video Description
Company Information
iBeacon Feature

HTTP Server Support Ble Wifi gateway 130m long range ble beacon

iB006N is a BLE to WiFi gateway and bridge.The gateway reads iBeacon, Eddystone data, or other data from sensors through ble, and it communicates using WiFi through TCP/HTTP sockets to upload the collected readings and/or receive instructions from a central cloud based server.


Application

■ iBeacon/Eddystone/tag receiver/Sensors for location tracking
■ BLE sensor reader for sensor network
■ Building automation
■ Health and wellness monitoring
■ Cycling, biking
■ Security
■ Location tracking
■ Access management
■ Advertisement
■ Industrial automation

iBeacon Parameters
WiFi RF Specification
Wireless
IEEE 802.11b/g/n
Network modes
Wi-Fi Direct, soft-AP
Frequency band
2.400 – 2.484 GHz
Operation Frequency
2400-2483.5MHz
Programmable
Channel Bandwidth
20MHz
Modulation
OFDM, DSSS (Direct Sequence Spread Spectrum), DBPSK, DQPSK, CCK , 16QAM, 64QAM
Maximum receive input level
- 10dBm (with PER < 8%@11 Mbps)
- 20dBm (with PER < 10%@54 Mbps)
- 20dBm (with PER < 10%@MCS7)
Minimum receive input level
- 70dBm (typ. with PER < 10%@54 Mbps)
- 70dBm (typ. with PER < 10%@MCS7)
Transmit Power
17dBm (typical)@802.11b
13dBm (typical)@802.11g
11dBm (typical)@802.11n
Range
130M in open area
Security
WPA/WPA2
BLE RF Specification
Receiver Sensibility
-96 dBm

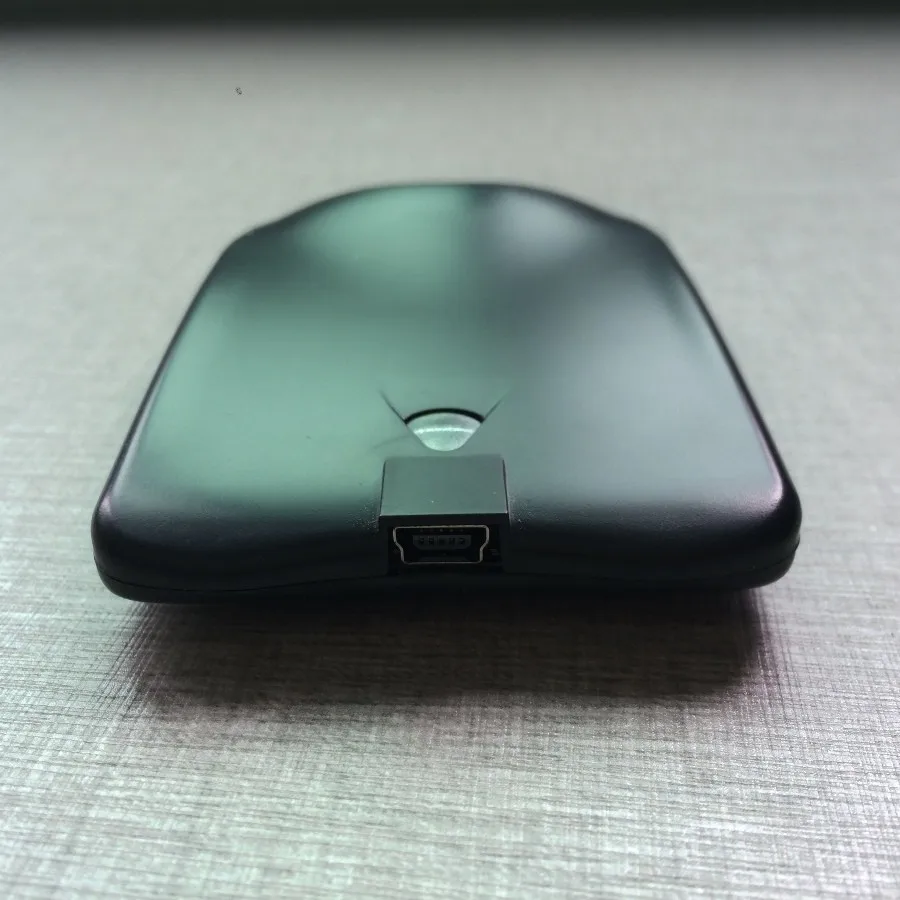

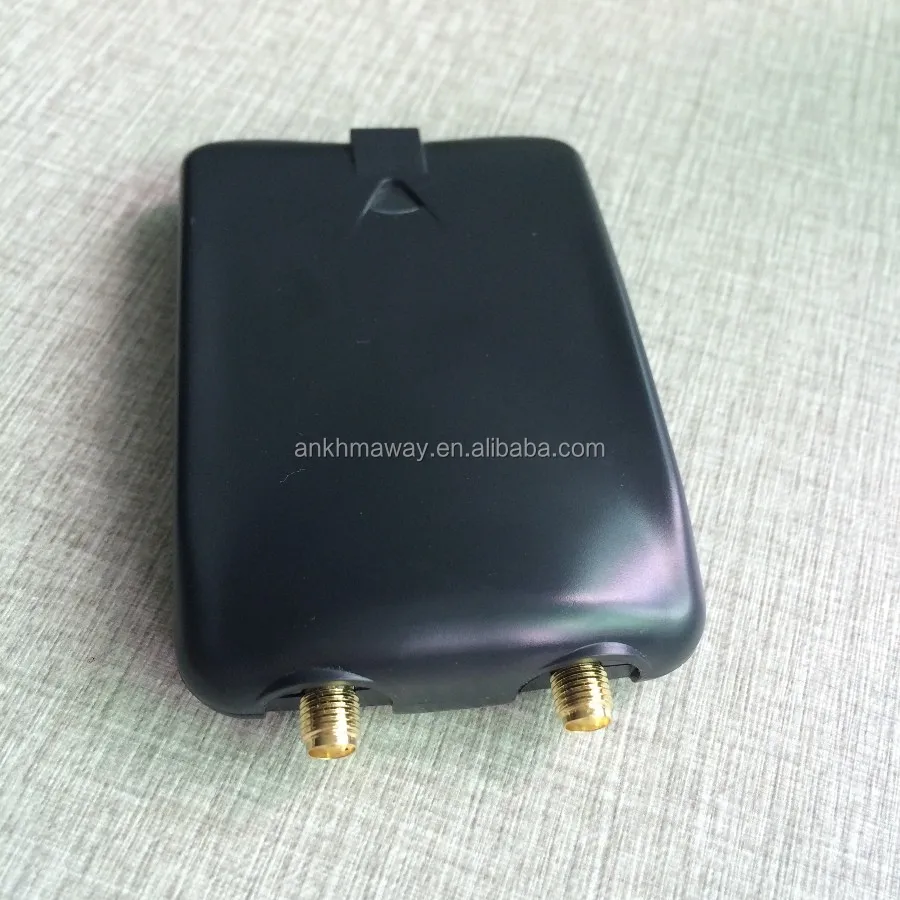

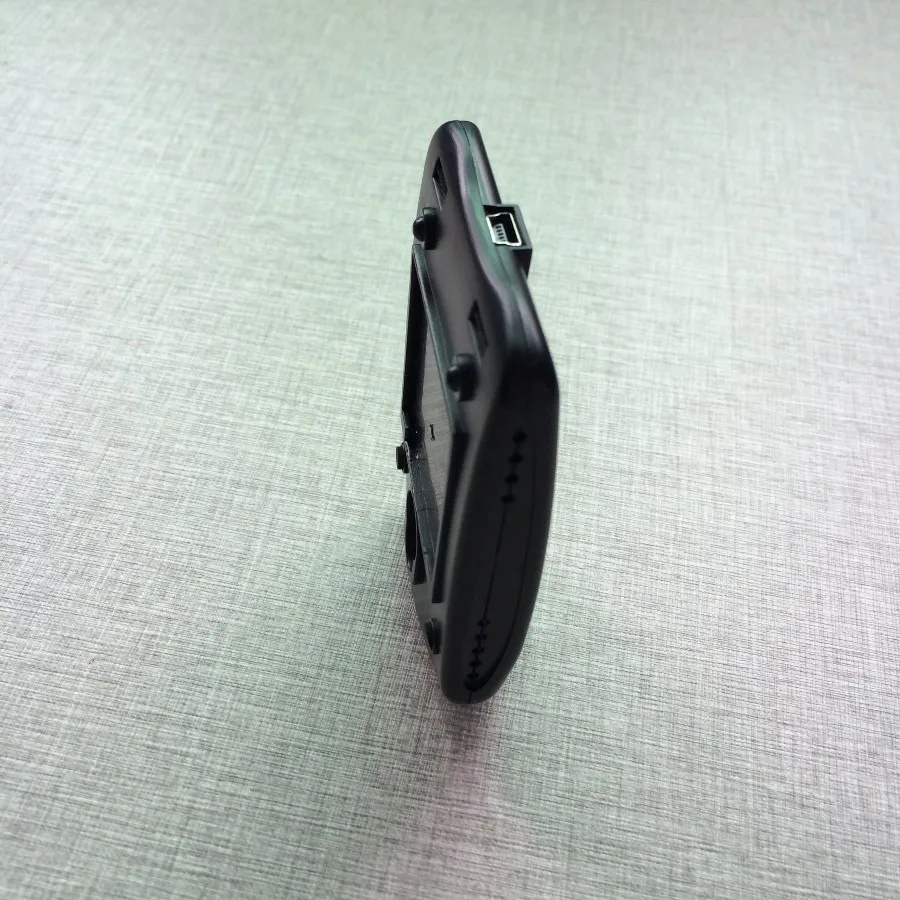

Detailed Images
Other Models

iB001N

Ble range: 20-30m
Battery type: CR2032
Working time: 12 months based on broadcasting rate 1second
Size: 27*7.6mm
Chipset: N51822 256KB.

iB003N

Ble range: 100m
Battery type: CR2477
Working time: 58monthsbased on broadcasting rate 1second
Size: 42.3mmx42.3mmx13.4mm
Chipset: N51822 256KB

iB004N PLUS

Ble range: 100m
Battery type: CR2477
Working time: 58 months based on broadcasting rate 1second
Size: 40*40*16.5mm
Chipset: N51822 256KB

iB001W

Features: iBeacon data, but Eddystone data is optional
Chipset: N51822 256KB
Ble range: 20m in open air
Battery type: Rechargeable battery
Working time: 1 month based on broadcasting rate 1s every charge
With Vibrator and LED
Color: black, blue, pink, orange, red

iB001M

Ble range: 70m
Battery type: CR2016
Working time: 10 months based on broadcasting rate 1second
Size: 40.3mm x 23.9mm x 2.6mm
Chipset: N51822 256KB

iB005N-SMA

Ble range: 130m
Powered by: USB adapter
Size: 19*15*6mm
Chipset: N51822 256KB

iB005N

Ble range: 40m
Powered by: USB adapter
Size: 19*15*6mm
Chipset: N51822 256KB

FAQ

Q1. Do you provide the technical support to the developers?
Re: Sure. After you place an order and get the beacons, we will provide tool APP with API document, and iOS/Android SDK and Android Source Code for your programming.

Q2. Can we brand your product with our company LOGO?
Re: Yes, we will provide customization including logo printing, tooling design for housing, firmware customization, PCB re-design, etc.

Q3. How can we get the samples to test?
Re: You can submit an order in Alibaba or contact us directly. All of the samples can be supplied from stock. Samples will be sent within 1-5 days after paid.

Q4. How will you deliver my goods to me?
A: We always ship samples order and MOQ order by Express ( Door To Door), such as DHL,UPS,Fedex... to enable our customers to get their goods rapidly. We can ship mass order by Air, or Sea, or Express, according to customers' choice.

Q5. What's the warranty of the product?
Re: We supply 6 months warranty from the shipping date if it is quality issue.

Q6. What is the lead time of your products?
A: 1-5 business days for samples order, 7-15 days for MOQ order, 10-30 days for mass production orders (based on different quantities)..

Q7. What is your product quality?
A: We have a QA team to guarantee our products quality. All beacons are 100% manually checking.

About Us
Our Service
Case customization
For the bulk quantity, we provide the case customization and even the eletronic design for your customized housing only.

Logo printing customization
We can print your own logo on the case in any color .

Firmware customization
We provide the firmware customization according to your requirements.
