Remote Monitoring Alarm PIR Motion Sensor BLE iBeacon Eddystone Beacon

FOB Reference Price:Get Latest Price
US $14-37 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
iBeTag
Model Number:
iB004N Plus-PIR
Product Name:
Bluetooth Beacon
Working time in iBeacon model:
58 months based on broadcasting rate 1s'
Detecting distance:
About 2m
Bluetooth range:
100m in open air
Housing size:
40*40*17mm
Battery:
CR2477
Certificates:
CE/FCC/ROHS/MFI
Application:
iOS7.0 above with tool APP & Andriod BLE 4.0 above with SDK
Weight:
40G
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Carton Packing
Port
Shenzhen
Lead Time :
Shipped in 7 days after payment
Hot Products
iBeacon Feature

Bluetooth Alarm PIR Motion Sensor BLE iBeacon Eddystone Beacon

Support iBeacon and Eddystone.

-Built-in Beacon firmware, compatible with BLE.

-Built-in a coin battery.
-All the parameters can be configured (UUID, Major, Minor, Measured Power, TX Power, etc.)
-We will provide you with a tool APP and API document to configure beacon data, and IOS/Android SDK and Android Source Code to develop your APP.
-Support the background management of battery.


-Intelligent PIR detection and Microprocessor Combined to eliminate false alarms.

-Built with tamper-proof and self-test supervision.

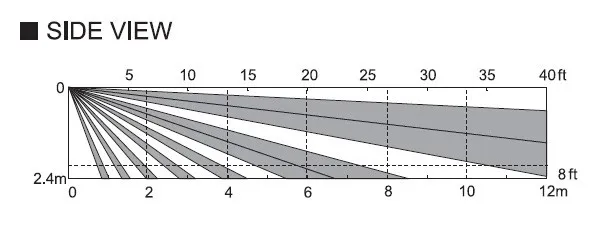

-Downward view (look-down) detection to eliminate blind zone.
-Intelligent circuit with temperature compensation, reliable operation at high temperature



The PIR motion detector utilizes ultra-low power consumption design to make long battery lifetime, also integrated with RF immunity, temperature protection and noise reduction so on technologies against false alarm technology, has high endurable with local temperature changing caused by curtain or sun light etc.

Specification
Item
Test Data
Remarks
Chip
NRF51822
Nordic
Battery model
CR2477
Null
Temperature Range
-20 to 60℃
Null
Power Supply
3V
DC
Operation Frequency
2400-2483.5MHz
Programmable
Wireless Frequency
2.4GHz
BLE
Modulation
Q-QPSK
Null
Standby current
2uA
Null
Output Power
4 dBm - -40dBm
Programmable
Receiving Sensitivity
-93dBm
High gain mode
Transmission distance
100m
BER<0.1%, Open space
Detecting distance
About 2m
Null
Antenna
50ohm
Onboard
Remote transmission option
Remote transmission to server with iB006N
Null
State
Operation Current (uA)
Sleeping Mode
3.6
Connectable Mode
142
Non-Connectable Mode
22.5


                Click here to contact us


Our Service

Case customization
For the bulk quantity, we provide the case customization and even the eletronic design for your customized housing only.

Logo printing customization
We can print your own logo on the case in any color .

Firmware customization
We provide the firmware customization according to your requirements.

FAQ

FAQ

Q1. Do you provide the technical support to the developers?
Re: Sure. After you place an order and get the beacons, we will provide tool APP with API document, and iOS/Android SDK and Android Source Code for your programming.

Q2. Can we brand your product with our company LOGO?
Re: Yes, we will provide customization including logo printing, tooling design for housing, firmware customization, PCB re-design, etc.

Q3. How can we get the samples to test?
Re: You can submit an order in Alibaba or contact us directly. All of the samples can be supplied from stock. Samples will be sent within 1-5 days after paid.

Q4. How will you deliver my goods to me?
A: We always ship samples order and MOQ order by Express ( Door To Door), such as DHL,UPS,Fedex... to enable our customers to get their goods rapidly. We can ship mass order by Air, or Sea, or Express, according to customers’ choice.

Q5. What's the warranty of the product?
Re: We supply 6 months warranty from the shipping date if it is quality issue.

Q6. What is the lead time of your products?
A: 1-5 business days for samples order, 7-15 days for MOQ order, 10-30 days for mass production orders (based on different quantities)..

Q7. What is your product quality?
A: We have a QA team to guarantee our products quality. All beacons are 100% manually checking.
